Smith Blair 441-05100450-900 4 in. Flexi-Coat Fusion Bonded Epoxy 4 x 4, 5 L Sleeve 250 PSI

Product Description

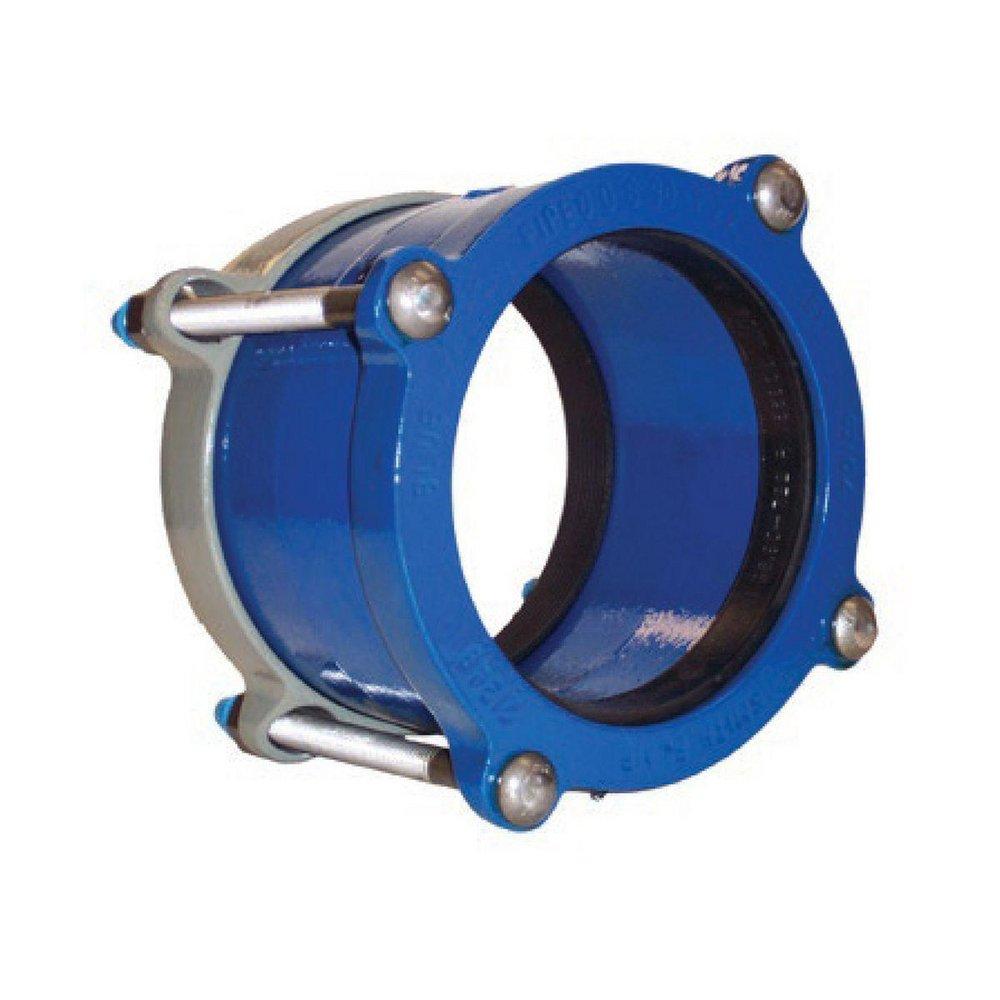

The Smith Blair 441-05100450-900 is a ductile iron coupling designed for connecting plain end pipes with varying outer diameters. This coupling features a length of eight and a half inches and can handle pressures up to two hundred fifty PSI. The product is suitable for installations where flexibility and durability are required.

• Designed to join pipes with outer diameters of four point eight to five point one inches.
• Constructed from ASTM A536 cast ductile iron with Flexi-Coat fusion bonded epoxy.
• Compatible with multiple sizes and types of flanges and gaskets.

Product Highlights

This coupling provides a robust solution for pipeline repairs and installations. Its design promotes ease of installation without disassembly and accommodates a wide range of pipe sizes.

Product Information

Standard Information

• Brand: Smith-Blair
• Manufacturer Part Number: 441-05100450-900

Technical Specifications

• Material: ASTM A536 Cast Flexi-Coat Fusion Bonded Epoxy Ductile Iron
• Size: 4 inches
• Overall Length: eight and a half inches
• Pressure Rating: 250 PSI
• Temperature Rating: -20 to 180 degrees F
• Application: Joining plain end pipes with varying outer diameters
• Pipe Outer Diameter: 4.8 to 5.1 inches (End 1) and 4.22 to 4.5 inches (End 2)
• Includes: four bolts of size 5/8 inches diameter by eight and a half inches length
• Standards Compliance: UL, NSF/ANSI 61/372, AWWA C219/C213
