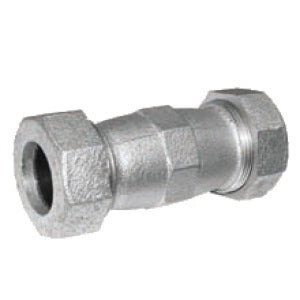

Smith Blair 525-00008400-003 1/2 Zinc Pltd Comp Coupling

Product Description

Smith Blair 525-00008400-003 is a compression coupling designed for effective joining of pipes. This coupling features a nominal size of one half inches, with an outside diameter of one point sixty-eight inches. Constructed with a ductile iron sleeve, it is finished with a galvanized coating to enhance corrosion resistance. The length of the coupling is four point thirteen inches, and it can withstand a maximum pressure of one hundred fifty PSI.

• Compression coupling made of ductile iron
• Galvanized finish for corrosion resistance
• Suitable for industrial water and wastewater applications

Product Highlights

Smith Blair 525-00008400-003 offers strong pipe connections with easy installation. Its design includes features like wrench flats for tightening and a retainer cup that keeps the gasket in place.

Product Information

Standard Information

• Item Name: Compression Coupling
• Series/Model: Series 525

Technical Specifications

• Nominal Size: 1/2 IN
• Outside Diameter: 1.68 IN
• Length: 4.13 IN
• Material: Ductile Iron Sleeve
• Finish/Color: Galvanized
• Maximum Pressure: 150 PSI
• Other Physical Dimension: 0.84 IN Pipe Outside Diameter
