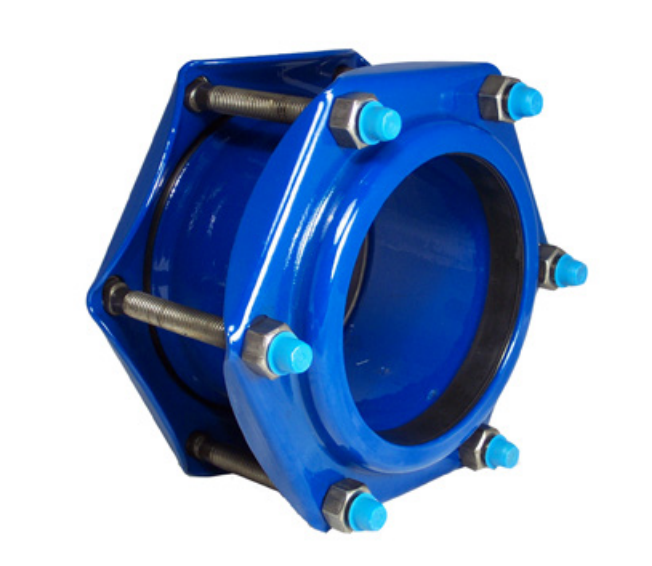

Smith-Blair 411-90086303-003 8 x 8, 10 L Sleeve, 300 PSI

Product Description

Smith-Blair 411-90086303-003 is a coupling for joining plain end pipes without special fittings. It has an outer diameter of eight point sixty-three inches and a length of ten point five inches. The coupling supports a pressure rating of three hundred PSI, making it suitable for various applications.

• Type: Straight
• Material: Carbon Steel with Flexi-Coat Fusion Bonded Epoxy
• Pressure Rating: 300 PSI

Product Highlights

This coupling offers a reliable solution for pipe installations, providing easy assembly and strong sealing capabilities.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Application: Joining Plain End Pipe without Welding

Technical Specifications

• Size: 8 Inch
• Overall Length: 10-1/2 Inch
• Material: ASTM A283C Fabricated Carbon Steel
• Temperature Rating: -20 to 180 Deg F
• Angular Deflection: 4-1/2 Degree
• Pipe Outer Diameter: 8.63 Inch
• Sleeve Size: 10 Inch Length x 0.25 Inch Thickness
• Flange Outer Diameter: 13-1/2 Inch
• Bolt Size: (6) 5/8 Inch Diameter x 10-1/2 Inch Length
