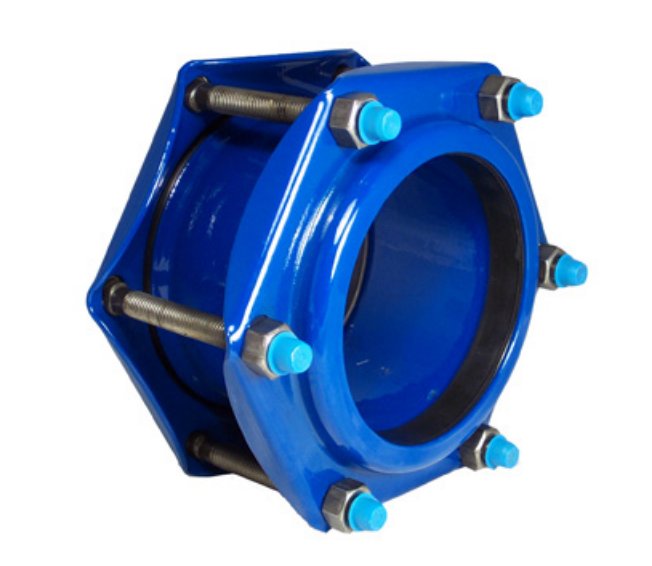

Smith-Blair 411-90066301-003 6 x 5 in. Bolted Steel Coupling

Product Description

Smith-Blair 411-90066301-003 is a bolted sleeve type coupling, specifically designed for joining plain end pipes of the same diameter. This coupling allows for limited expansion and contraction while effectively dampening vibration to minimize pipe fatigue.

• Pressure rating of three hundred PSI
• Temperature range from negative twenty to one hundred eighty degrees Fahrenheit
• Application for joining plain end pipe without welding

Product Highlights

This product is easy to install with no special pipe end preparation required. It can also accommodate anchor studs for joint restraint and includes components such as bolts, nuts, gaskets, and flanges.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Type: Straight

Technical Specifications

• Overall Length: six inches
• Pipe Outer Diameter: six point sixty-three inches
• Sleeve Size: five inches length x zero point twenty-five inches thickness
• Flange Outer Diameter: eleven and one-half inches
• Angle Deflection: four degrees
• Material: ASTM A283C fabricated Flexi-Coat fusion bonded epoxy carbon steel
• Maximum Pressure Rating: three hundred PSI
• Minimum Temperature Rating: negative twenty degrees Fahrenheit
• Maximum Temperature Rating: one hundred eighty degrees Fahrenheit
• Applicable Standard: UL, NSF/ANSI 61/372, AWWA C219/C213
