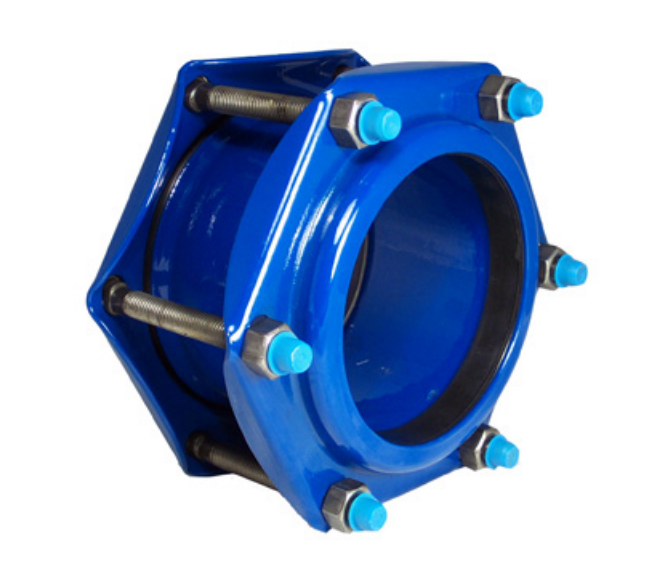

Smith-Blair 411-90045010-003 4 x 4, 12 L Sleeve, 4.5 OD, 300 PSI

Product Description

The Smith-Blair 411-90045010-003 is a coupling designed for joining plain end pipe seamlessly without welding. This product features a four-inch diameter and a thirteen and a half-inch overall length. Constructed from ASTM A513/A53 fabricated carbon steel, this coupling is fusion bonded with Flexi-Coat epoxy for durability. It operates under a pressure rating of three hundred PSI and maintains temperature resistance from minus twenty to one hundred eighty degrees Fahrenheit.

• Size: Four inches
• Pressure Rating: Three hundred PSI
• Easy installation without special pipe fittings

Product Highlights

This coupling is suitable for use across various applications, especially where flexibility and reliability are important. Its bolted design allows for movement due to expansion and contraction, minimizing pipe fatigue.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• UPC: 19004501000

Technical Specifications

• Type: Straight
• Overall Length: Thirteen and a half inches
• Material: ASTM A513/A53 Fabricated Flexi-Coat Fusion Bonded Epoxy Carbon Steel
• Temperature Rating: Minus twenty to one hundred eighty degrees Fahrenheit
• Application: Joining plain end pipe without the need for welding
• Pipe Outer Diameter: Four point five inches
• Sleeve Size: Twelve inches length x zero point one eighty-eight inches thickness
• Flange Outer Diameter: Nine point zero five inches
• Bolt Size: (Four) five eighths inch diameter x thirteen and a half inches length
• Pressure Rating: Three hundred PSI
