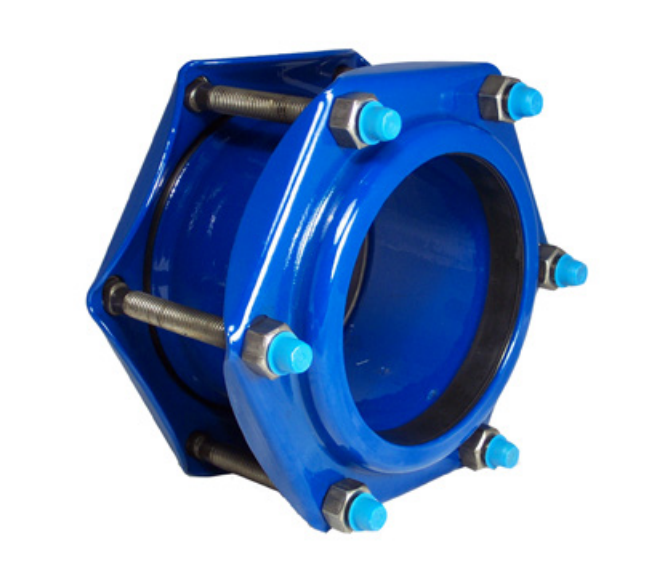

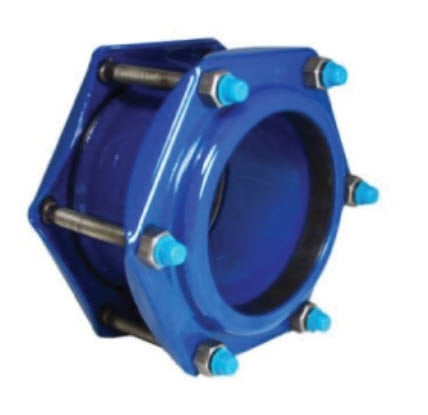

Smith Blair 411-90045001-003 Model 411 4 x 5 in. Bolt Flexi-Coat Fusion Bonded Epoxy Carbon Steel Coupling

Product Description

The Smith-Blair 411-90045001-003 is a bolted sleeve type coupling designed for joining plain end pipe of the same diameters. This coupling offers a robust solution for standard pipe connections where welding is not required.

• Size: Four inches
• Pressure rating: Three hundred PSI
• Temperature rating: Negative twenty to one hundred eighty degrees Fahrenheit

Product Highlights

This coupling is beneficial in systems where expansion and contraction occur. It allows for flexing without damage to the piping structure.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Part Number: 411-90045001-003

Technical Specifications

• Material: ASTM A513/A53 Carbon Steel with Flexi-Coat Fusion Bonded Epoxy
• Overall Length: Six inches
• Pipe Outer Diameter: Four point five inches
• Sleeve Size: Five inches length by zero point one eight eight inches thickness
• Flange Outer Diameter: Nine and one fifth inches
• Angular Deflection: Four degrees
• Application: Joining plain end pipe without the need for welding
• Includes: High strength bolts and nuts, high strength low alloy carbon steel Z-section, and follower flanges
• Applicable Standards: UL, NSF/ANSI 61/372, AWWA C219/C213
