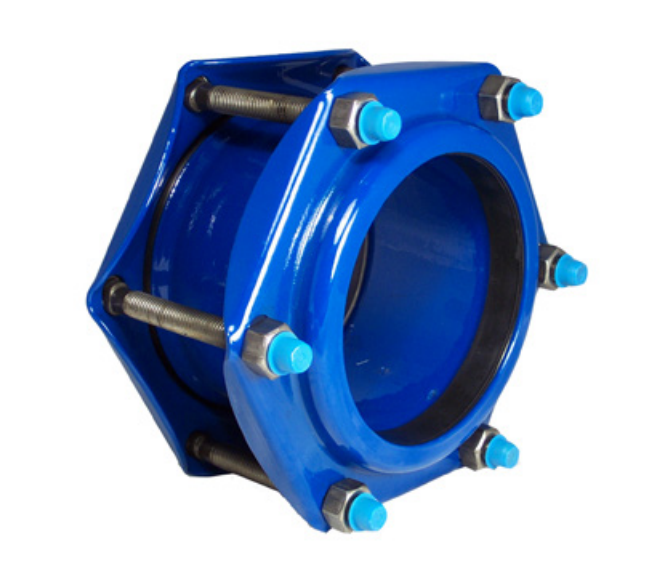

Smith-Blair 411-90035010-003 Coupling 3 x 3, 12 L Sleeve, 300 PSI

Product Description

The Smith-Blair 411-90035010-003 is a coupling designed for joining plain end pipe without the need for welding or special fittings. This product features a size of three inches with an overall length of thirteen and one-half inches. It is made of fabricated carbon steel with a Flexi-Coat fusion bonded epoxy finish. The coupling has a pressure rating of three hundred PSI and can handle temperatures from negative twenty to one hundred eighty degrees Fahrenheit.

• Pressure rated for 300 PSI
• Can handle temperatures from -20 to 180 degrees Fahrenheit
• Easy installation without special pipe end preparation

Product Highlights

This coupling is suitable for applications where vibration dampening and limited expansion are needed. It accommodates significant deflection while allowing changes in the direction of piping without the use of elbows or bends.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Material: ASTM A513/A53 Fabricated Steel

Technical Specifications

• Product ID: 3466
• Size: 3 inches
• Overall Length: 13.5 inches
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 degrees Fahrenheit
• Flange Outer Diameter: 8.03 inches
• Gasket Material: ASTM D2000 Nitrile
• Included Components: High strength low alloy carbon steel Z-section and follower flanges
