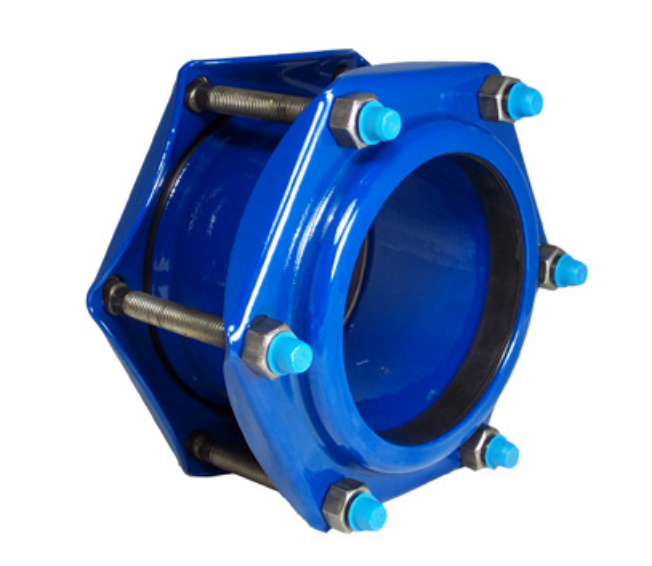

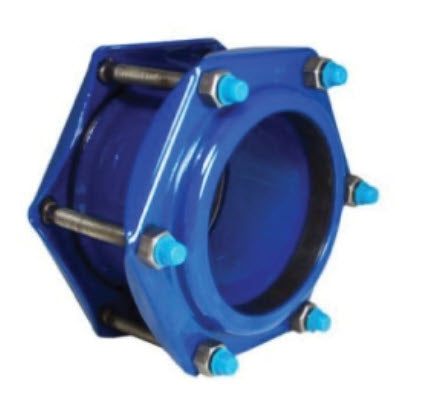

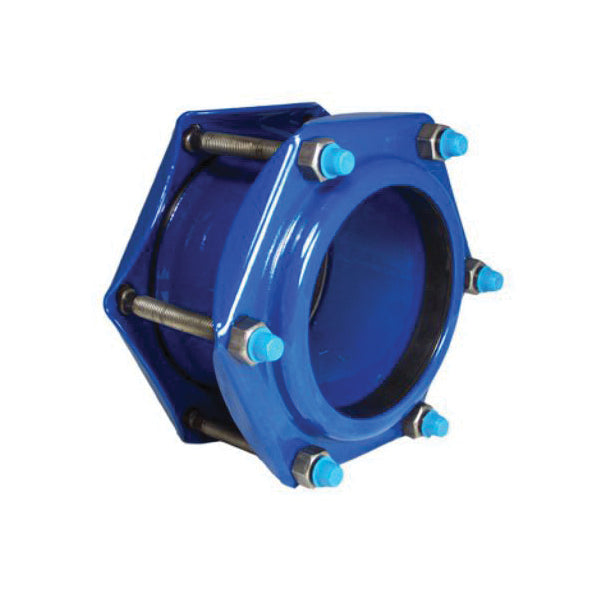

Smith Blair 411-90035001-003 3 x 5 in. Flanged Flexi-Coat Fusion Bonded Epoxy Carbon Steel Coupling

Product Description

The Smith-Blair 411-90035001-003 is a bolted sleeve type coupling specifically designed for joining plain end pipes of the same diameter. This coupling allows for straightforward installations without the need for welding or special pipe fittings.

• Pressure Rating: 300 PSI
• Temperature Range: -20 to 180 degrees Fahrenheit
• Flange Size: 3 inches by 5 inches

Product Highlights

This coupling is suited for various piping materials and offers deflection capabilities that accommodate direction changes without elbows or bends.

Product Information

Standard Information

• Brand: Smith-Blair
• MPN: 411-90035001-003

Technical Specifications

• Overall Length: 6 inches
• Material: ASTM A513/A53 Fabricated Flexi-Coat Fusion Bonded Epoxy Carbon Steel
• Application: Joining plain end pipe
• Angular Deflection: 4 degrees
• Pipe Outer Diameter: 3.5 inches
• Sleeve Size: 5 inches Length x 0.18 inches Thickness
• Flange Outer Diameter: 8.3 inches
• Bolt Size: (3) 5/8 inch Diameter x 6 inch Length
