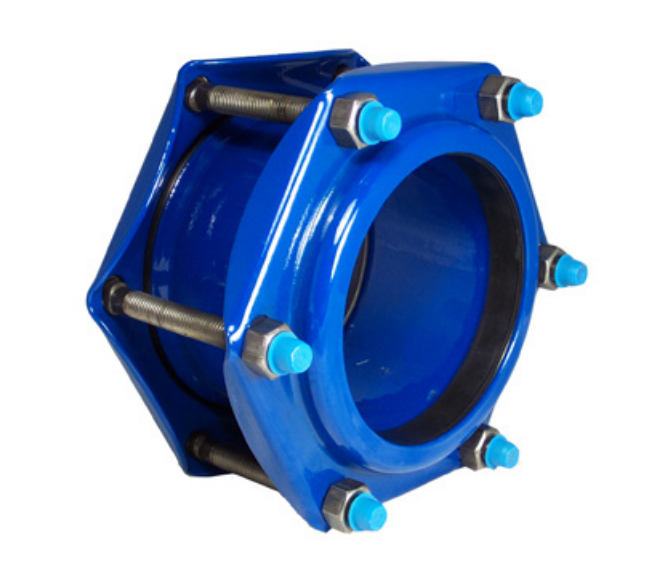

Smith-Blair 411-00023802-003 2 x 2, 7 L Sleeve 300 PSI

Product Description

The Smith-Blair 411-00023802-003 is a coupling designed for joining plain end pipe. This coupling is suitable for applications requiring a pressure rating of 300 PSI. It enables connections without welding or special fittings. The product is made from carbon steel and features a Flexi-Coat fusion bonded epoxy finish for increased durability.

• Size: 2 inch
• Overall length: 10-1/2 inch
• Temperature rating: -20 to 180 Deg F

Product Highlights

This coupling facilitates the joining of pipes while allowing for limited angular deflection. It offers good vibration dampening capabilities, which helps reduce pipe fatigue.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Pressure Rating: 300 PSI

Technical Specifications

• Type: Straight
• Pipe Outer Diameter: 2.38 inch
• Sleeve Size: 7 inch Length x 0.12 inch Thickness
• Flange Outer Diameter: 5-11/16 inch
• Gasket Details: ASTM D2000 Nitrile
• Includes: High Strength Low Alloy Steel Bolt, Heavy Semi-Finished Hexagon Nut
• Applicable Standards: UL, NSF/ANSI 61/372, AWWA C219/C213
