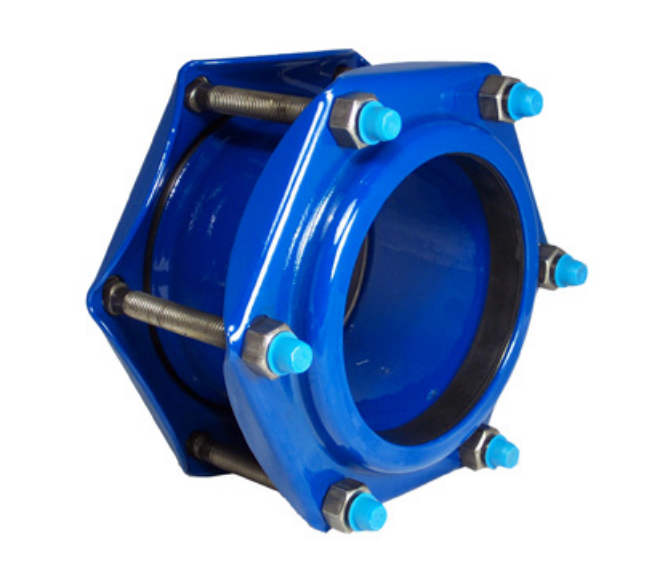

Smith Blair 411-00023801-003 2 x 5 in. Bolt Flexi-Coat Fusion Bonded Epoxy Carbon Steel Coupling

Product Description

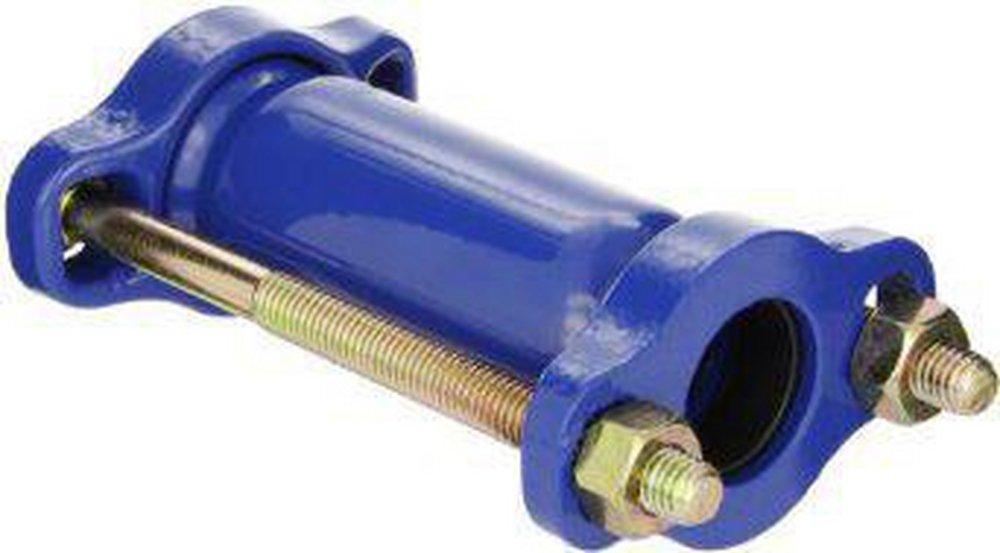

Smith Blair 411-00023801-003 is a bolted sleeve type coupling for joining plain end pipes of the same diameters. It is designed for use in various applications, providing a reliable connection for piping systems.

• Size: 2 inches
• Pressure rating: 300 PSI
• Material: Carbon steel with Flexi-Coat fusion bonded epoxy finish

Product Highlights

This coupling allows for limited expansion and contraction, making it suitable for dynamic piping systems. It also dampens vibration, which helps reduce pipe fatigue, ensuring longevity and performance.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Type: Straight

Technical Specifications

• Overall Length: 7 inches
• Temperature Rating: -20 to 180 degrees Fahrenheit
• Application: Joining plain end pipe without welding or special fittings
• Angular Deflection: 7 degrees
• Pipe Outer Diameter: 2.38 inches
• Sleeve Size: 5 inches length x 0.12 inches thickness
• Flange Outer Diameter: 5-5/16 inches
• Bolt Size: (2) 1/2 inch diameter x 7 inch length
• Gasket Details: ASTM D2000 nitrile
