Smith-Blair 411-00019001-003 1-1/2 x 1-1/2, 5 L Sleeve, 1.9 OD, 300 PSI, (2) 1/2 x 7 Bolt

Product Description

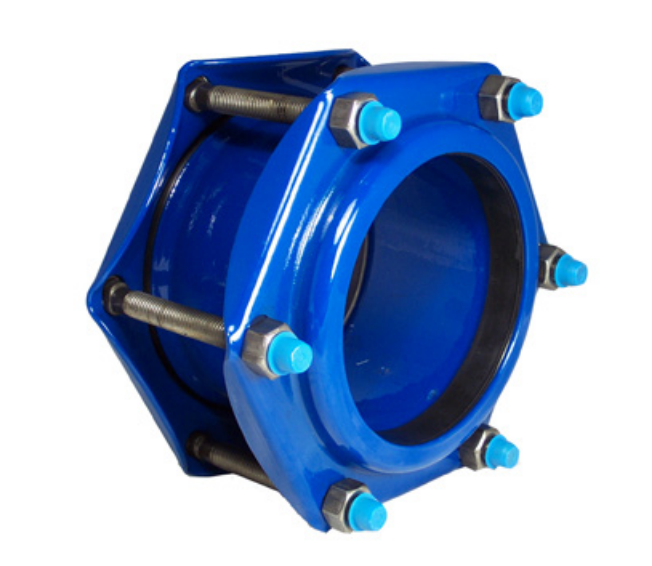

The Smith-Blair 411-00019001-003 coupling is designed for joining plain end pipes of the same diameter. This product is built for reliability in various applications in plumbing and pipe installation.

• Fabricated from carbon steel with Flexi-Coat fusion bonded epoxy.
• Rated for a maximum pressure of 300 PSI.
• Temperature rating ranges from negative twenty to one hundred eighty degrees Fahrenheit.

Product Highlights

This coupling facilitates quick and efficient joining of pipes without the need for welding. It can accommodate slight changes in direction, making it ideal for various plumbing setups.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Type: Straight

Technical Specifications

• Length: 7 inches
• Size: 1-1/2 inches
• Material: ASTM A513/A53 Fabricated Flexi-Coat Fusion Bonded Epoxy Carbon Steel
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 degrees F
• Application: Joining plain end pipe without the need for welding or special fittings
• Angular Deflection: 7 degrees
• Pipe Outer Diameter: 1.9 inches
• Sleeve Size: 5 inches length x 0.12 inches thickness
• Flange Outer Diameter: 4-13/16 inches
• Bolt Size: (2) 1/2 inches diameter x 7 inches length
• Gasket Details: ASTM D2000 Nitrile
• Includes: High strength low alloy steel bolt, heavy semi-finished hexagon nut
