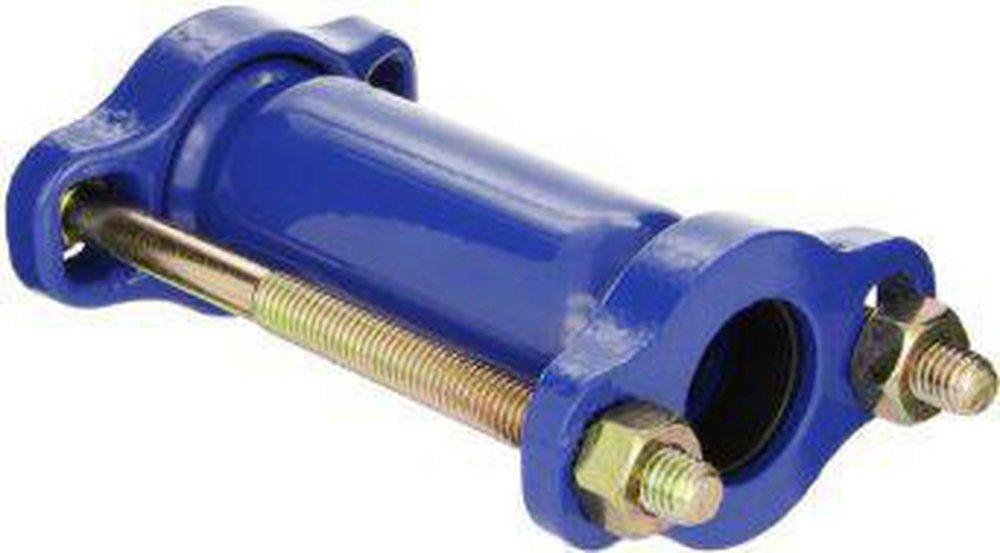

Smith Blair 411-00013201-003 1 x 5 in. Bolt Flexi-Coat Fusion Bonded Epoxy Carbon Steel Coupling

Product Description

Smith-Blair 411-00013201-003 is a steel coupling designed for joining plain end pipes of the same diameter. The coupling has a straight configuration, with a size of one inch and an overall length of seven inches. It is made from ASTM A513/A53 fabricated carbon steel and features a Flexi-Coat fusion bonded epoxy coating for enhanced durability. This coupling is rated for a maximum pressure of three hundred PSI and can be used in temperatures ranging from minus twenty to one hundred eighty degrees Fahrenheit.

• Pressure rating of 300 PSI
• Suitable for joining plain end pipes without welding
• Includes high strength low alloy steel bolts

Product Highlights

This bolted sleeve type coupling allows for limited expansion and contraction, ensuring flexibility in pipe installation and helping to dampen vibrations that could lead to pipe fatigue.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Part Number: 411-00013201-003

Technical Specifications

• Size: 1 Inch
• Overall Length: 7 Inches
• Material: ASTM A513/A53 Steel
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 Degrees F
• Angular Deflection: 7 Degrees
• Pipe Outer Diameter: 1.32 Inches
• Sleeve Size: 5 Inches Length x 0.12 Inches Thickness
• Flange Outer Diameter: 4.25 Inches
• Bolt Size: (2) 1/2 Inch Diameter x 7 Inch Length
