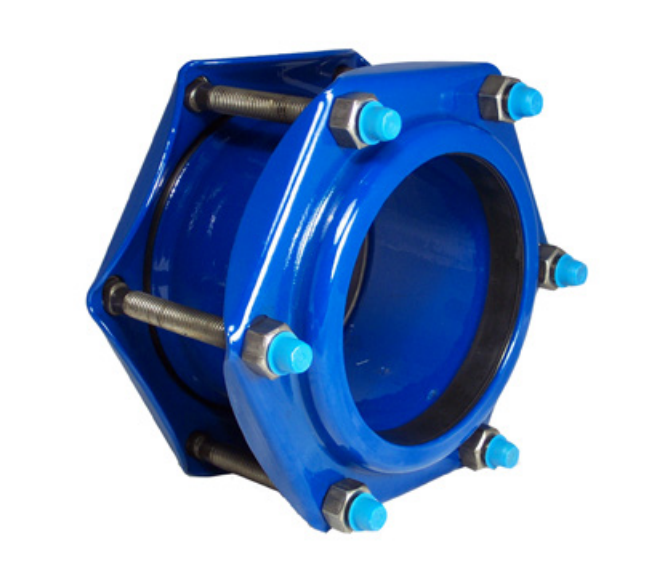

Smith Blair 411-00010501-003 3/4 x 4-1/2 in. Bolt Flexi-Coat Fusion Bonded Epoxy Carbon Steel Coupling

Product Description

The Smith-Blair 411-00010501-003 is a bolted sleeve type coupling designed for joining plain end pipe of the same diameters. This coupling features a straight design and is made from carbon steel with a Flexi-Coat fusion bonded epoxy, ensuring durability and reliability for various piping needs.

• Size: 3/4 inch
• Overall Length: 7 inches
• Pressure Rating: 300 PSI

Product Highlights

This coupling allows for easy installation without the need for special pipe end preparation. It is engineered to handle a maximum temperature of one hundred eighty degrees Fahrenheit and a minimum temperature of minus twenty degrees Fahrenheit.

Product Information

Standard Information

• Material: Carbon Steel with Flexi-Coat Epoxy
• Type: Straight

Technical Specifications

• Pipe Outer Diameter: 1.05 inch
• Sleeve Size: 4-1/2 inch length x 0.12 inch thickness
• Flange Outer Diameter: 3-7/8 inch
• Bolts: (2) 1/2 inch diameter x 7 inch length
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 Degrees F
• Applicable Standards: AWWA C219/C213, UL, NSF/ANSI 61/372
