Smith - Blair 31700111007000 10 x 3/4 in. CC Ductile Iron Double Strap Saddle

Product Description

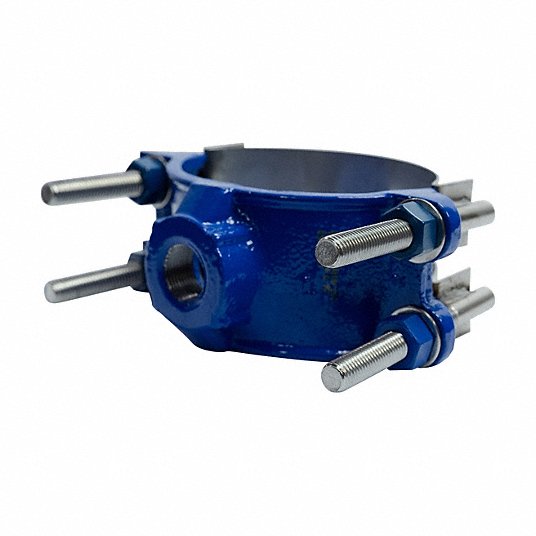

The SMITH - BLAIR 31700111007000 is a 10 x 3/4 in. CC ductile iron double strap saddle. The wide saddle body provides stability on the pipe and is designed with PVC and other soft or brittle pipe in mind. The gasket fully bonds to the cavity to hold it in place.

• Wide band spread the load over larger area to prevent damage to the pipe when tightening the strap
• A closed lug on one side, combined with the strap, acts as a hinge for easier installation
• Maximum pressure of 300 psi

Product Highlights

This ductile iron double strap saddle is suitable for use with PVC and other soft or brittle pipes.

Product Information

Standard Information

• Brand: SMITH - BLAIR
• Manufacturer Part Number: 31700111007000
• Country of Origin: China

Technical Specifications

• AWWA: AWWA C-213, AWWA C-800
• Coating: Flexi-Coat Fusion Bonded Epoxy
• End Connection 1: CC
• End Connections: CC
• Fits Pipe Size: 10 in
• Fitting Type: Dual Strap
• Material: Ductile Iron
• Maximum Temperature: 180
• Minimum Temperature: -20
• NSF Certified: Yes
• Pressure - Maximum: 300 psi
• Range (in): 10.75 in - 11.1 in
• Tap Size: 3/4
• UL Listed: Yes
