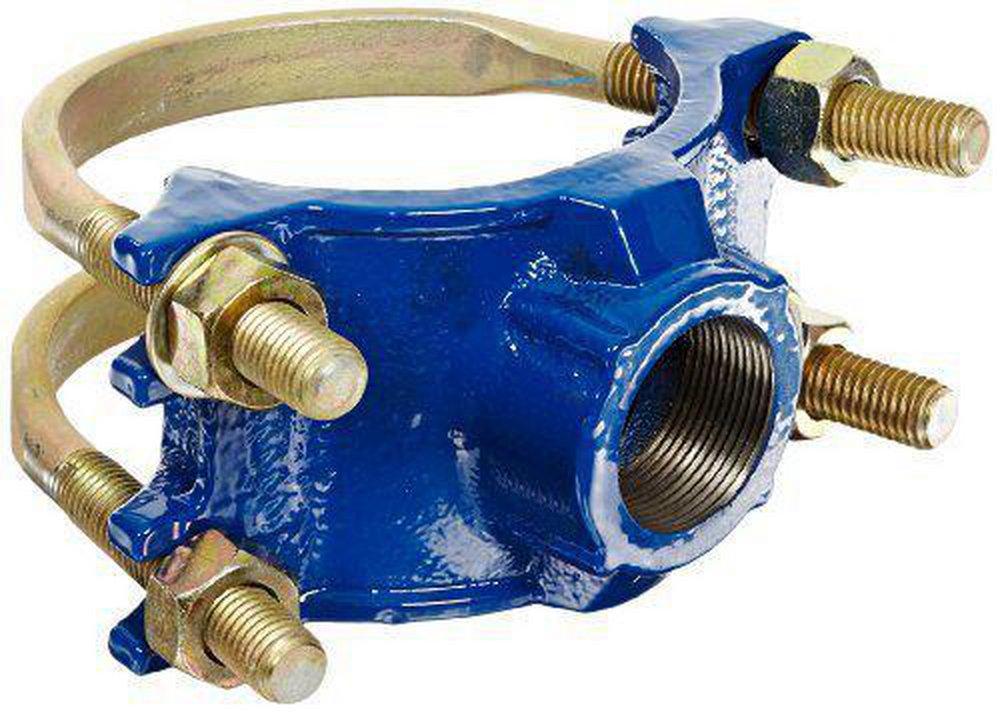

Smith Blair 313-00101014-000 8 to 10 x 2 NPT Outlet Service Saddle

Product Description

The Smith Blair 313-00101014-000 is a service saddle designed for joining branch lines to pipes. It is suitable for pipes with an outside diameter of eight to ten inches and has a two-inch NPT outlet connection.

• Material: Ductile Iron body and Carbon Steel bale
• Pressure rating of 300 PSI
• Temperature rating ranges from -20 to 180 degrees Fahrenheit

Product Highlights

Ideal for creating branch connections to pipelines, this fitting is durable and effective for various plumbing applications.

Product Information

Standard Information

• Brand: Smith-Blair
• MPN: 313-00101014-000

Technical Specifications

• Nominal Pipe Size: 8 to 10 inches
• Outlet Connection: 2 inches, threaded
• Material Specification: ASTM A536 for body and ASTM A108 for bale
• Finish: Flexi-Coat Fusion Bonded Epoxy
• Applicable Standard: UL, NSF/ANSI 61G/372, AWWA C800
• Application: Tapping pipe for branch connections and service installations
• Pipe Outer Diameter: 8.54 to 10.1 inches
• Includes: Heavy hex steel nut, washer, and Nitrile gasket
