Smith Blair 313-00101008-000 Service Saddle 300 PSI (8 to 10) Replacement MPN

Product Description

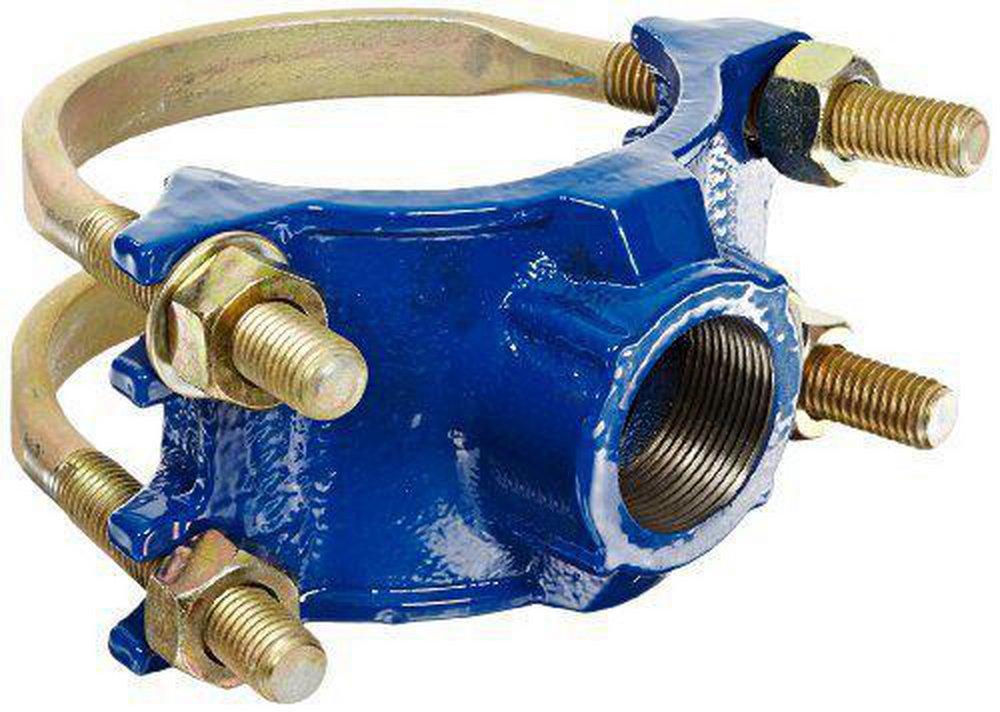

The Smith Blair 313-00101008-000 is a service saddle designed for pipes with an outer diameter ranging from eight to ten inches. This product facilitates the installation of service connections, air valves, and vacuum valves. Constructed from ductile iron and featuring a carbon steel double bale, this saddle provides strong performance under pressure.

• Nominal pipe size of eight to ten inches
• Rated for a pressure of three hundred PSI
• Mounting type is double bale for secure connections

Product Highlights

This service saddle is durable and versatile, suitable for various plumbing applications.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Material: Ductile Iron (Body), Carbon Steel (Bale)

Technical Specifications

• Nominal Pipe Size: 8 to 10 inches
• Outlet Connection: 1 inch threaded
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 degrees F
• Finish: Flexi-Coat fusion bonded epoxy
• Mounting Type: Double bale
• Applicable Standard: UL, NSF/ANSI 61G/372, AWWA C800
• Pipe Outer Diameter: 8.54 to 10.1 inches
