Smith Blair 274-00000690-000 6 Inch Pipe Bell Joint Leak Clamp 150 PSI

Product Description

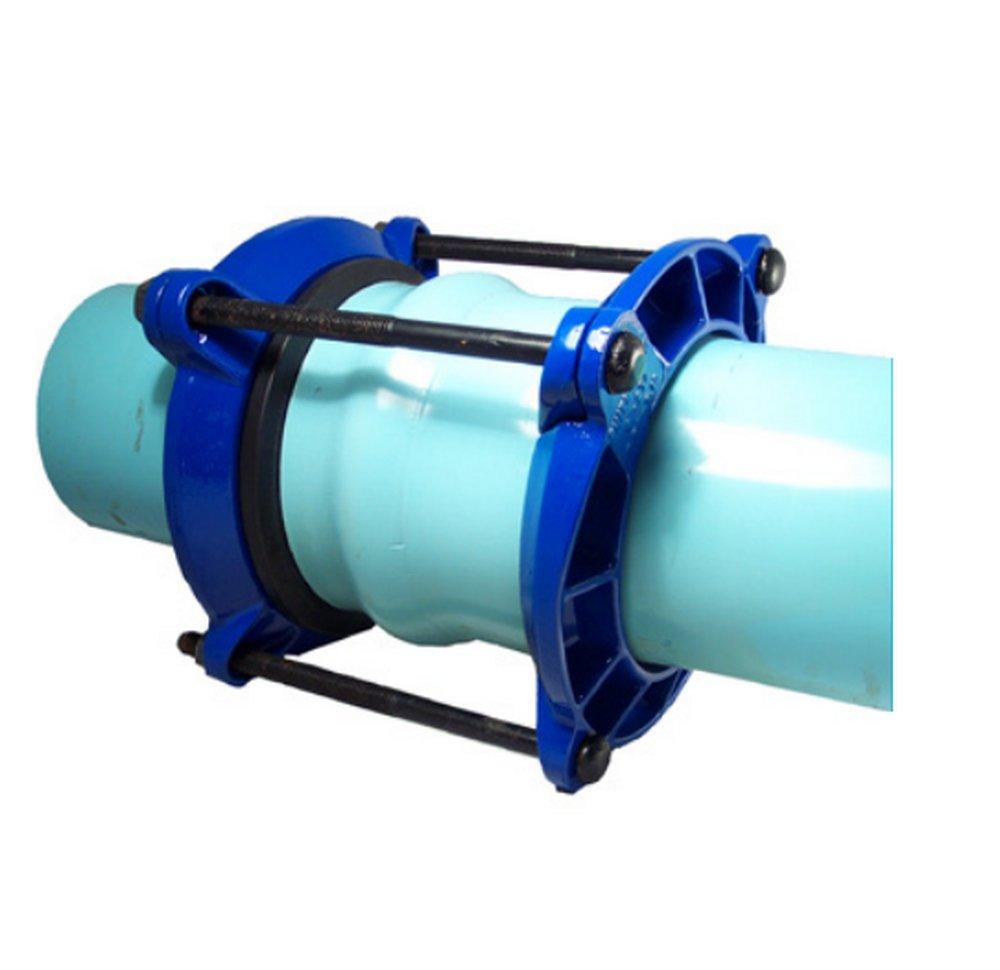

The Smith-Blair 274-00000690-000 is a six-inch pipe bell joint leak clamp designed for use in various plumbing and waterworks applications. This clamp accommodates pipe sizes from six point nine inches to seven point one inches and is rated for a pressure of one hundred fifty PSI. It features a strong ductile iron construction with a fusion bonded epoxy finish, making it resistant to corrosion.

• Suitable for ductile iron and PVC pipe.
• Includes four bolts for secure installation.
• Interchangeable front and back pieces for easier installation.

Product Highlights

This leak clamp is ideal for sealing and preventing leaks in bell and spigot joints, ensuring a tight fit without interrupting the flow of water.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• UPC: 40000069000

Technical Specifications

• Nominal Pipe Size: 6 Inch
• Clamp Range: 6.9 to 7.1 Inch
• Pressure Rating: 150 PSI (Water)
• Temperature Rating: -20 to 180 Deg F
• Number of Bolts: 4
• Bolt Size: 5/8 Inch Diameter x 9 Inch Length
• Body Material: ASTM S36 Ductile Iron
• Finish: Flexi-Coat Fusion Bonded Epoxy
• Gasket Material: ASTM D2000 Nitrile
• Inclusions/Features: High Strength Low Alloy Steel Bolt, Heavy Semi Finished Hexagon Nut
