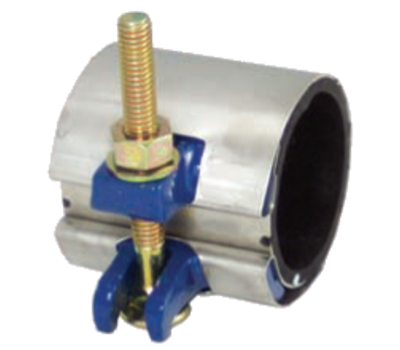

Smith Blair 244-00016606-000 Full Circle 1-1/4 x 6 in. Pipe Repair Clamp

Product Description

The Smith-Blair 244-00016606-000 is a full circle pipe repair clamp designed for effective repairs of pin holes, punctures, or splits in pipes. This clamp is suitable for use on pipes with an outside diameter of 1.66 inches, making it versatile for various piping applications. It features a robust construction from ASTM A240 type 304 stainless steel, ensuring durability and corrosion resistance.

• Nominal Pipe Size: 1-1/4 inches
• Pressure Rating: 150 PSI
• Temperature Rating: -20 to 180 degrees Fahrenheit

Product Highlights

This clamp comes with two electrogalvanized bolts for easy installation and a solid gripping mechanism. The gasket material is ASTM D2000 nitrile, providing secure sealing and enhanced performance.

Product Information

Standard Information

• Brand: Smith-Blair
• MPN: 244-00016606-000

Technical Specifications

• Body Material: ASTM A240 304 Stainless Steel
• Gasket Material: ASTM D2000 Nitrile
• Clamp Range: 1.66 inches
• Number of Bolts: 2
• Bolt Size: 3/8 inch diameter x 3 inches length
• Width: 6 inches
• Applicable Standards: UL, NSF/ANSI 61G/372
