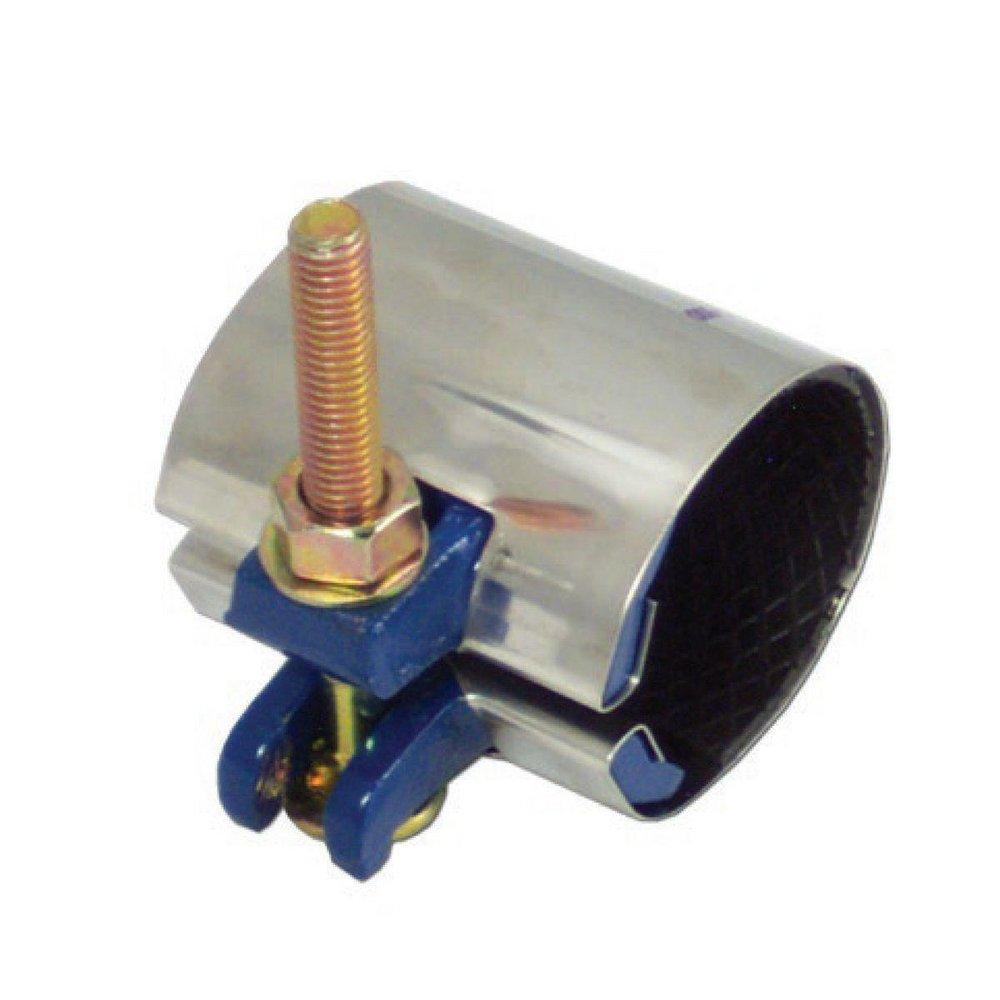

Smith Blair 244-00013206-000 Full Circle Redi-Clamp 1 x 6 in. 304 Stainless Steel Repair Clamp with Electrogalvanized Bolts

Product Description

The Smith-Blair 244-00013206-000 is a full circle pipe repair clamp designed to effectively seal pin holes, punctures, or splits in pipes. This clamp is suitable for one-inch pipes with an outside diameter of one point thirty-two inches. It features a six-inch width and can handle pressure ratings of up to one hundred fifty psi.

• Made from durable ASTM A240 304 stainless steel
• Two bolts for secure installation
• Provides 360-degree coverage around the pipe

Product Highlights

The Smith-Blair clamp allows for reliable repairs in various applications like steel, IPS-sized PVC, HDPE, and copper pipes.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• Model Number: 244-00013206-000

Technical Specifications

• Body Material: ASTM A240 304 Stainless Steel
• Gasket Material: ASTM D2000 Nitrile
• Pressure Rating: 150 psi
• Temperature Rating: -20 to +180 deg F
• Nominal Pipe Size: 1 inch
• Clamp Range: 1.32 inches
• Width: 6 inches
• Number of Bolts: 2
• Bolt Size: 3/8 inch diameter x 3 inch length
• Inclusions/Features: SAE J429 electrogalvanized carbon steel bolt, Flexi-Coat epoxy ASTM A536 ductile iron lug
