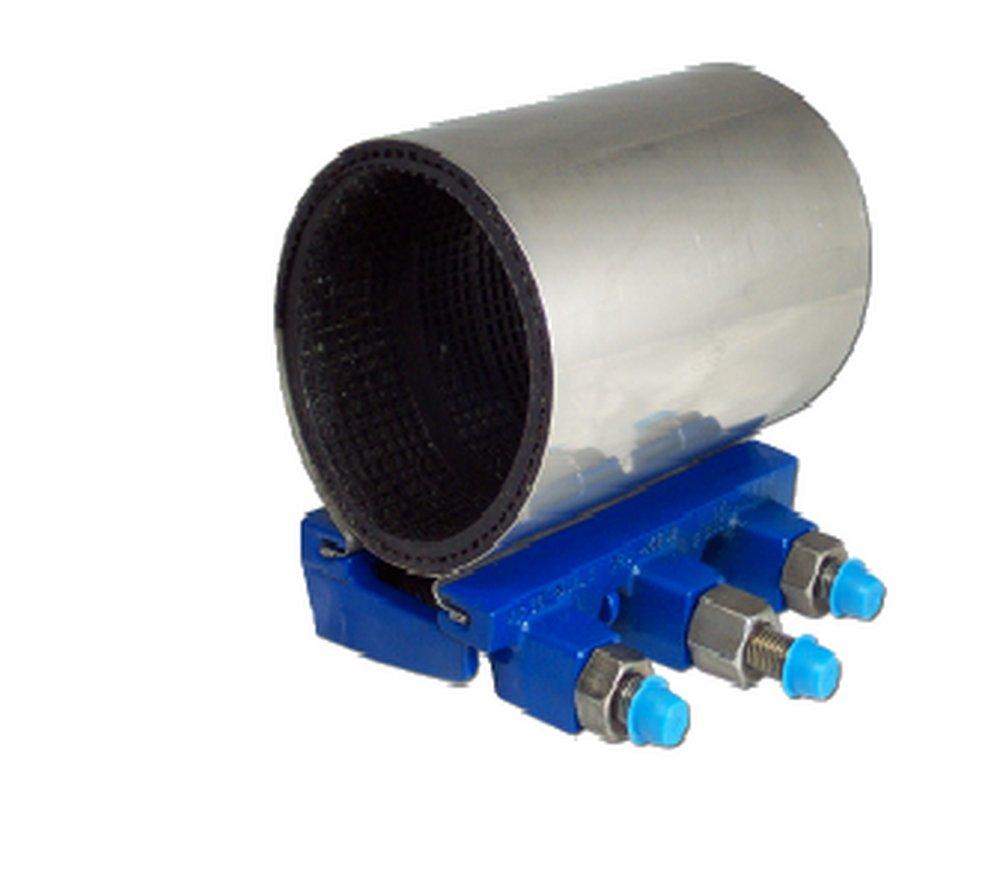

Smith - Blair 22900066307000 Full Circle® Leak Clamp 6 x 7-1/2 in.

Product Description

The SMITH - BLAIR 22900066307000 Full Circle® Leak Clamp is designed to fix a leaky solvent weld bell on PVC pipe by assembling parts outside the collar without cutting or draining the pipe. It features a nitrile gasket for superior storage and performance, resisting water, acids, alkalies, and many chemicals.

• Removable lugs to allow installation in tight spaces
• 360° gasket seal
• Flexi-Coat® epoxy finish for corrosion resistance

Product Highlights

This leak clamp is suitable for solvent and carbon steel pipe applications, with a Flexi-Coat fusion bonded epoxy and zinc coating for enhanced durability.

Product Information

Standard Information

• Brand: SMITH - BLAIR
• Manufacturer Part Number: 22900066307000
• Country of Origin: United States

Technical Specifications

• ANSI: ANSI 372, ANSI 372 Annex G, ANSI 61, ANSI 61 Annex G, ANSI B18.2.2
• ASTM: ASTM A-240, ASTM A-536 Grade 80-55-06, ASTM D-2000, ASTM F-1941-10
• AWWA: AWWA A-21.11, AWWA C-111
• Application: Bell on PVC pipe, and threaded steel couplings
• Coating: Flexi-Coat Fusion Bonded Epoxy, Zinc
• Collection: Full Circle
• Fits Pipe Size: 6 in
• Length: 7-1/2
• Material: Stainless Steel, Ductile Iron, Rubber
• Material Type: 304, NBR
• Maximum Temperature: 180
• Minimum Temperature: -20
• NSF: NSF 372, NSF 372 Annex G, NSF 61, NSF 61 Annex G
• NSF Certified: Yes
• Product Type: Leak Clamp
• Range (in): 6.56 in - 6.96 in
• UL Listed: Yes
• Brand: Smith-Blair
• MPN: 22900066307000
• Country of Origin: United States
• Category: Business & Industrial
• UPC: 22900066307000
• Standard Approvals: ANSI B.18.2.2 Bolts|ASTM A240 Band/Bridge Plate|ASTM A536 Lug|ASTM D2000 Gasket|AWWA C230|AWWA C111/A21.11 Bolts/Long Bolts/Nuts/Long Nuts|ANSI/NSF 61-G|ANSI/NSF 372|UL Listed
• Type: Collar Leak Clamp
• Series: 229
• Temperature Rating: -20 to 180 deg F
