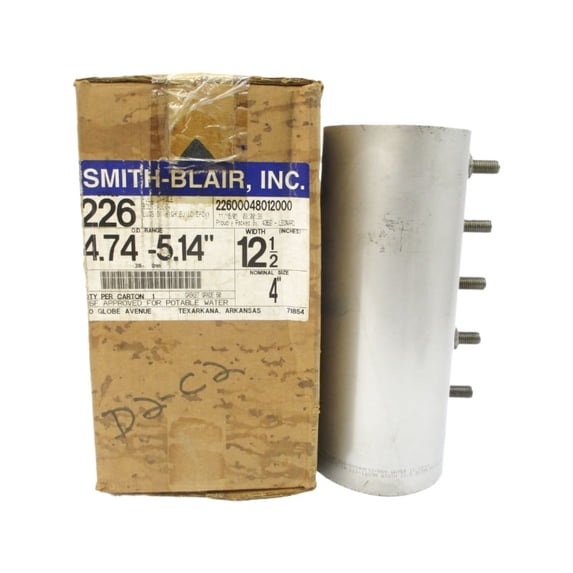

Smith - Blair 22600048012000 226 Series Repair Clamp 4 in

Product Description

The Smith-Blair 22600048012000 repair clamp consists of one or more stainless steel band sections to which cast or fabricated lugs are securely attached. These clamps provide a fast, economical means for repairing full circumferential breaks, holes, cracks and other types of damage. It has a full encirclement, tapered, overlapping, gridded gasket with a flush-mounted, bonded, stainless steel bridge plate to span the band opening between the lugs.

• Provides fast, economical means for repairing full circumferential breaks, holes, cracks and other types of damage
• Removable lugs to allow installation in tight spaces
• 360 deg gasket seal

Product Highlights

The Smith-Blair 22600048012000 repair clamp is ideal for repairing damage to pipes. It features a stainless steel body and a nitrile gasket.

Product Information

Standard Information

• Brand: SMITH - BLAIR
• Manufacturer Part Number: 22600048012000

Technical Specifications

• Additional Information: 304 Stainless Steel Material Construction
• Body Material: Stainless Steel
• Bolt Size: 5/8 x 6 in
• Diameter: 4.74 to 5.14 in
• Finish: Epoxy-Coated
• Fits Pipe Size: 4 in
• Gasket Material: Nitrile
• Gauge: 20 ga
• Material Standard: ASTM A240/D2000
• Mounting Type: Flush
• Number of Bolts: 5
• Pressure Rating: 300 psi
• Series: 226 Series
• Temperature Rating: -20 to 180 deg F
