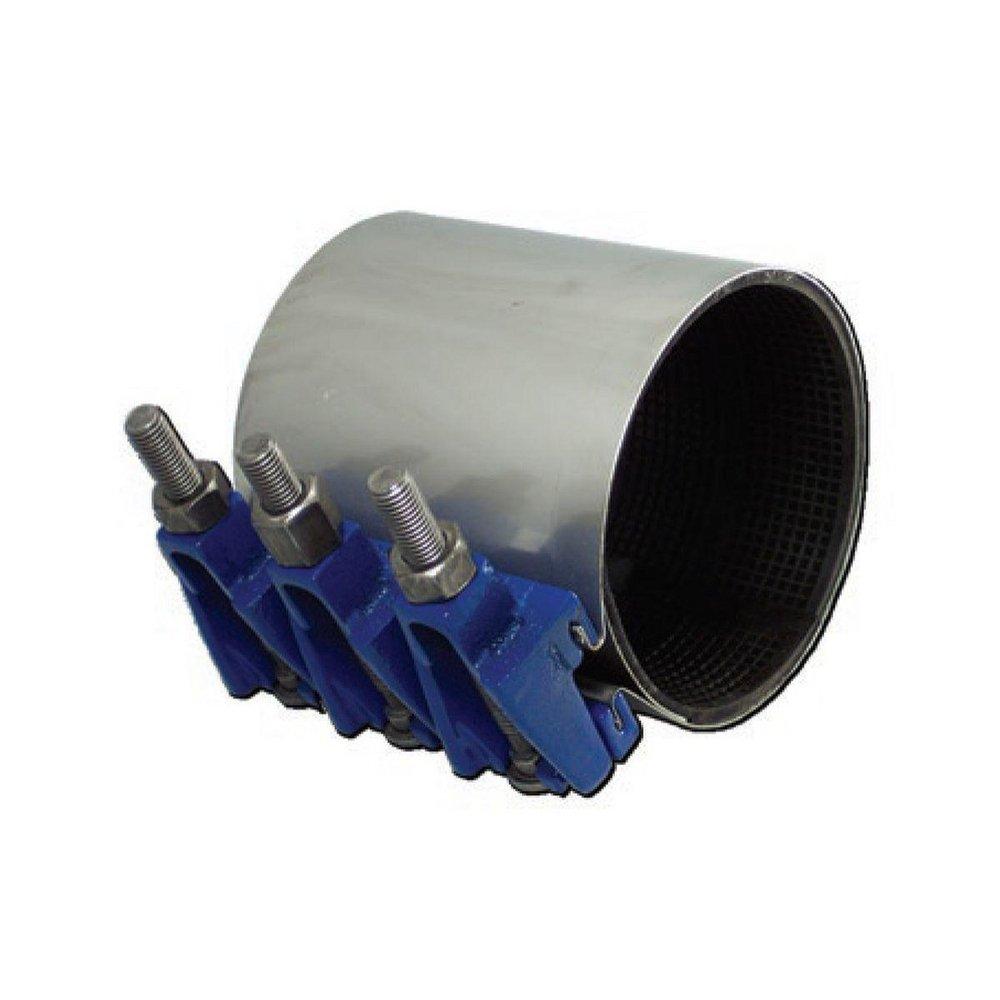

Smith Blair 226-00086315-000 Full Circle 8 x 15 Stainless Steel Repair Clamp

Product Description

Smith Blair 226-00086315-000 is a Full Circle pipe repair clamp designed for pipes with an outer diameter ranging from eight point five four to eight point nine four inches. This clamp is suitable for various pipe materials including cast iron, ductile iron, asbestos cement, steel, PVC, HDPE, copper, aluminum, and fiberglass. With a width of fifteen inches and a pressure rating of three hundred PSI, it provides reliable performance in pipe repair applications.

• Clamp Type: Full Circle, Single Band
• Nominal Pipe Size: Eight Inch
• Number of Bolts: Six

Product Highlights

This repair clamp is engineered for ease of installation and robust sealing capabilities. It includes removable lugs for tight spaces and features a Flexi-Coat fusion bonded epoxy finish for enhanced corrosion resistance.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• UPC: 60008631500

Technical Specifications

• Body Material: ASTM A240 304 Stainless Steel
• Finish: Flexi-Coat Fusion Bonded Epoxy
• Gasket Material: ASTM D2000 Nitrile
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 Deg F
• Bolt Size: 5/8 Inch Diameter x 6 Inch Length
• Inclusions/Features: High Strength Low Alloy Electrogalvanized Steel Bolt, Heavy Semi Finished Hexagon Nut, ASTM A536 Ductile Iron Lug
• Applicable Standard: UL, NSF/ANSI 61G/372, AWWA C230
