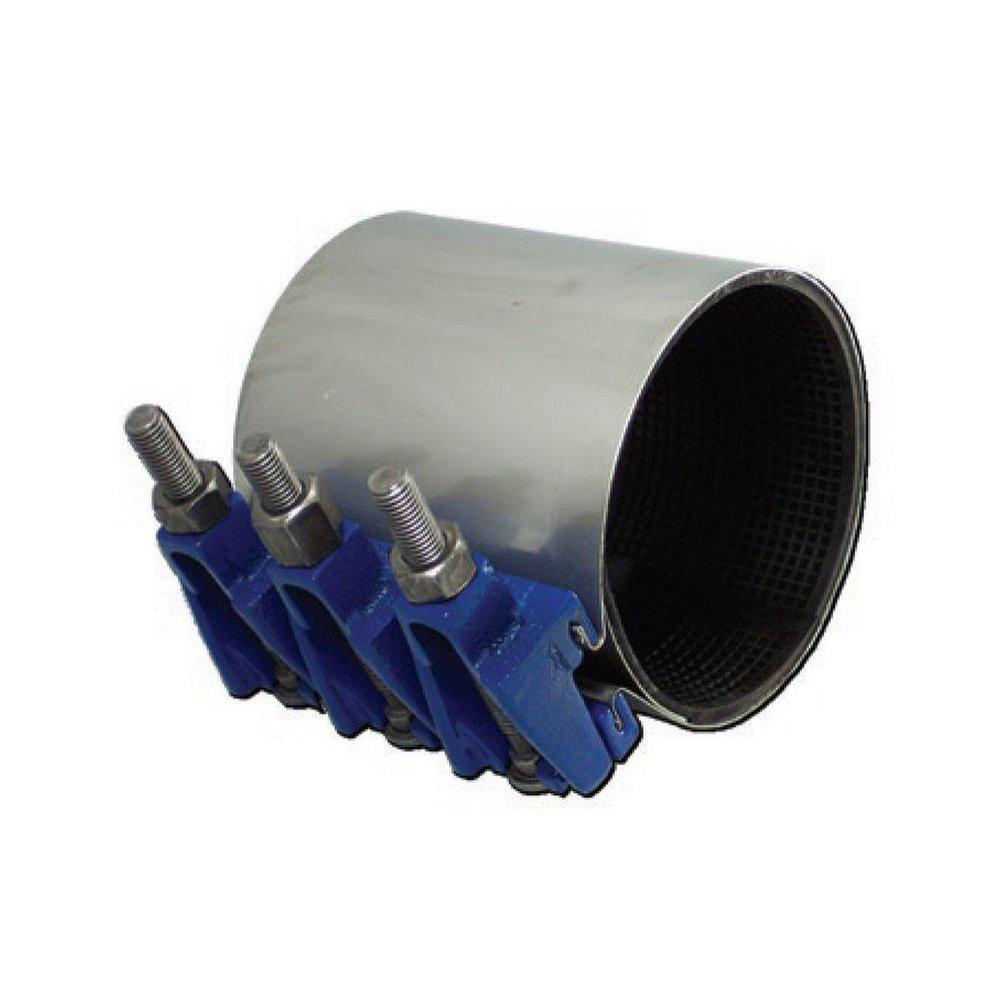

Smith Blair 226-00066315-000 Full Circle Pipe Repair Clamp 6 Inch 15 Inch 300 PSI

Product Description

The Smith Blair 226-00066315-000 is a pipe repair clamp designed for effective sealing and joining of various pipe types. This full circle clamp accommodates nominal pipe sizes of six inches with a range of six point fifty-six to six point ninety-six inches in outside diameter. It is suitable for high-pressure applications with a rating of three hundred PSI.

• Maximum operating pressure of three hundred PSI
• Constructed from stainless steel with an epoxy finish
• Compatible with various pipe materials including PVC, HDPE, and metals

Product Highlights

The Smith Blair pipe repair clamp provides a reliable solution for repairing breaks and leaks in pipes. It features a single band design that simplifies installation while ensuring a secure fit.

Product Information

Standard Information

• Manufacturer: Smith-Blair
• UPC: 60006631500

Technical Specifications

• Nominal Pipe Size: 6 Inch
• Clamp Range: 6.56 to 6.96 Inch
• Width: 15 Inch
• Body Material: ASTM A240 304 Stainless Steel
• Finish: Flexi-Coat Fusion Bonded Epoxy
• Gasket Material: ASTM D2000 Nitrile
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 Deg F
• Number of Bolts: 6
• Bolt Size: 5/8 Inch Diameter x 6 Inch Length
• Application: Suitable for Cast Iron, Ductile Iron, Steel, PVC, HDPE, Copper, and more
• Applicable Standard: UL, NSF/ANSI 61G/372, AWWA C230
