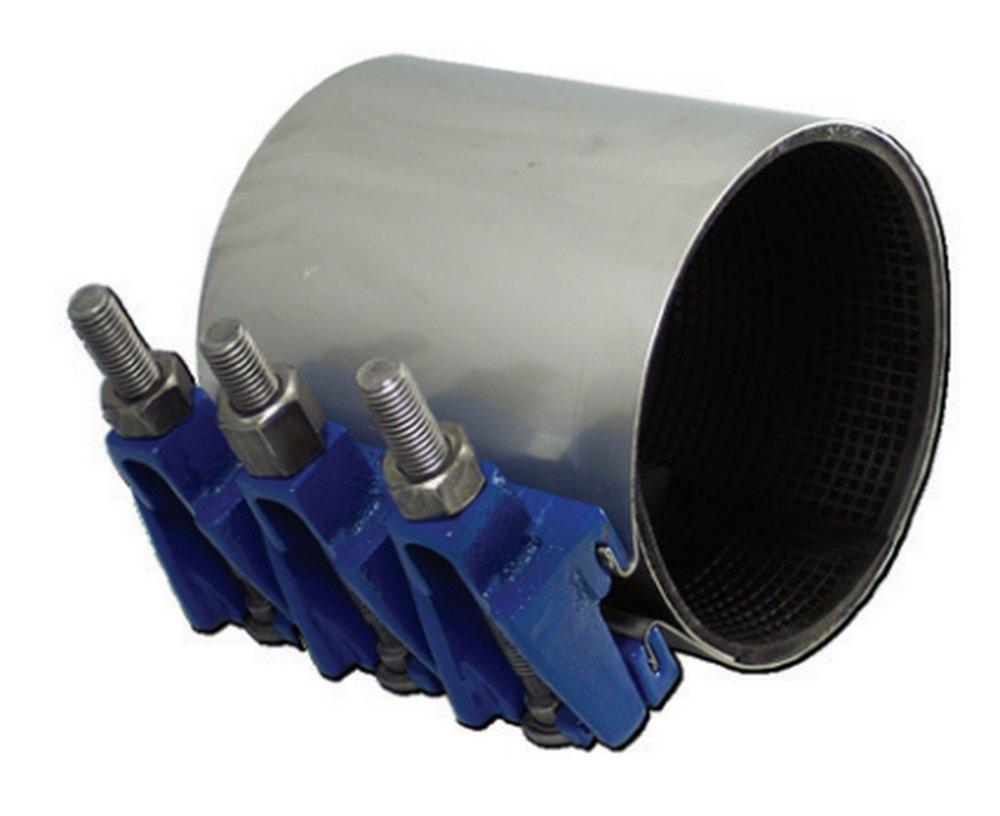

Smith Blair 226-00027512-000 Full Circle Pipe Repair Clamp 300 PSI 2-1/4 to 2-1/2 Inch

Product Description

The Smith Blair 226-00027512-000 is a full circle pipe repair clamp designed for repairing a variety of pipe sizes. This durable clamp fits nominal pipe sizes of two and one-quarter to two and one-half inches with an outside diameter range of two point seven to three inches. It features a single band with a Flexi-Coat fusion bonded epoxy finish, providing excellent corrosion resistance.

• Designed for pipe sizes 2-1/4 to 2-1/2 inches
• Pressure rating up to 300 PSI
• Constructed with 304 stainless steel for durability

Product Highlights

This clamp allows for quick repairs of full breaks, holes, and other pipe damage. Its removable lugs make installation easier in tight spaces. It is also versatile enough to join plain end pipes of the same diameter.

Product Information

Standard Information

• Manufacturer: Smith Blair
• Material: 304 Stainless Steel

Technical Specifications

• Nominal Pipe Size: 2-1/4 to 2-1/2 Inch
• Clamp Range: 2.7 to 3 Inch
• Width: 12.5 Inch
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 Degrees F
• Number of Bolts: 5
• Bolt Size: 5/8 Inch Diameter x 6-7/8 Inch Length
• Gasket Material: ASTM D2000 Nitrile
• Inclusions/Features: High strength low alloy electrogalvanized steel bolt, heavy semi-finished hexagon nut, ASTM A536 ductile iron lug
