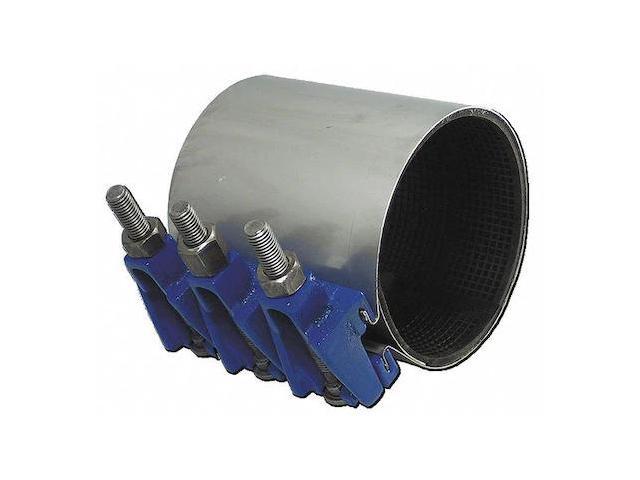

Smith - Blair 2.26001E+13 Repair Clamp, Pipe Size 6 In, 7 1/2 In L

Product Description

The SMITH-BLAIR 2.26001E+13 is a repair clamp designed for pipes with a size of 6 inches and an overall length of 7.5 inches. The clamp is constructed from stainless steel, grade 304, with steel bolts and a nitrile rubber gasket. It is suitable for copper tubes with a maximum size of 6 inches and a minimum size of 1/2 inch.

• Features a full coverage gasket.
• Maximum operating pressure of 150 psi.
• Includes 3 bolts.

Product Highlights

This repair clamp is ideal for repairing pipes with a 6-inch diameter, providing a secure and reliable seal.

Product Information

Standard Information

• Brand: SMITH - BLAIR
• Manufacturer Part Number: 2.26001E+13

Technical Specifications

• Brand: SMITH-BLAIR
• Bolt Material: Steel
• Clamp Material: Stainless Steel
• Clamp Material Grade: 304
• For Maximum Copper Tube Size: 6 in
• For Maximum Outside Diameter: 6 15/16 in
• For Minimum Copper Tube Size: 1/2 in
• For Minimum Outside Diameter: 6 9/16 in
• For Pipe Size: 6 in
• Gasket Coverage: Full Coverage
• Gasket Material: Nitrile Rubber
• Maximum Operating Pressure: 150 psi
• Maximum Vacuum Pressure: 10 psi
• Number of Bolts: 3
• Overall Length: 7.5 in
