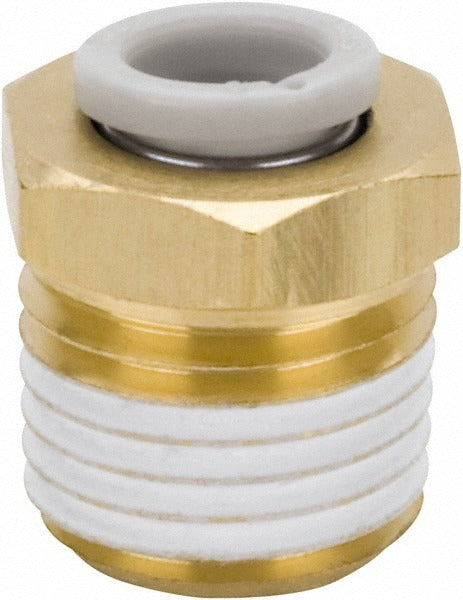

Smc Pneumatics KQ2H10-04AS Push-to-connect Tube Fitting

Product Description

The SMC PNEUMATICS KQ2H10-04AS is a push-to-connect tube fitting in a straight connector configuration, designed for use in pneumatic plumbing and fluid conveyance systems. Built from brass with a polybutylene tube insert, this fitting accepts tubing with a 10mm outside diameter and connects via a BSPT threaded port. It is rated to a maximum working pressure of 145 psi and handles temperatures from 23 degrees F to 140 degrees F. Licensed plumbers, pipefitters, and pneumatic system technicians install this type of fitting in compressed air lines, instrumentation tubing, and light industrial fluid systems.

This fitting is suited for residential and light commercial pneumatic and fluid handling applications where a reliable, tool-free tube connection to a threaded port is required. The BSPT thread type makes it appropriate for international-standard equipment and systems using British Standard Pipe Taper connections. Its compact overall length of 22.30mm keeps routing tight in panel builds, manifold assemblies, and equipment enclosures. The RoHS compliance rating makes it a viable choice for projects with environmental material restrictions.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and positive retention
• Brass body construction for durability and corrosion resistance in pneumatic service
• Rated to 145 psi maximum working pressure
• Compatible with 10mm outside diameter tubing
• BSPT threaded port for international-standard equipment connections
• RoHS compliant materials

Compatibility

Designed as an OEM-style push-to-connect connector for pneumatic and fluid systems requiring a 10mm OD tube connection with a BSPT threaded port rated to 145 psi.

Installation Notes

Installation is performed by plumbers, pipefitters, or pneumatic system technicians. Depressurize and isolate the system completely before removing or installing any tube fittings. Ensure tubing is cut cleanly and squarely with no burrs before insertion into the fitting to maintain proper seal and retention. Verify BSPT thread engagement and torque to the fitting manufacturer's standard practice for the pipe size.
