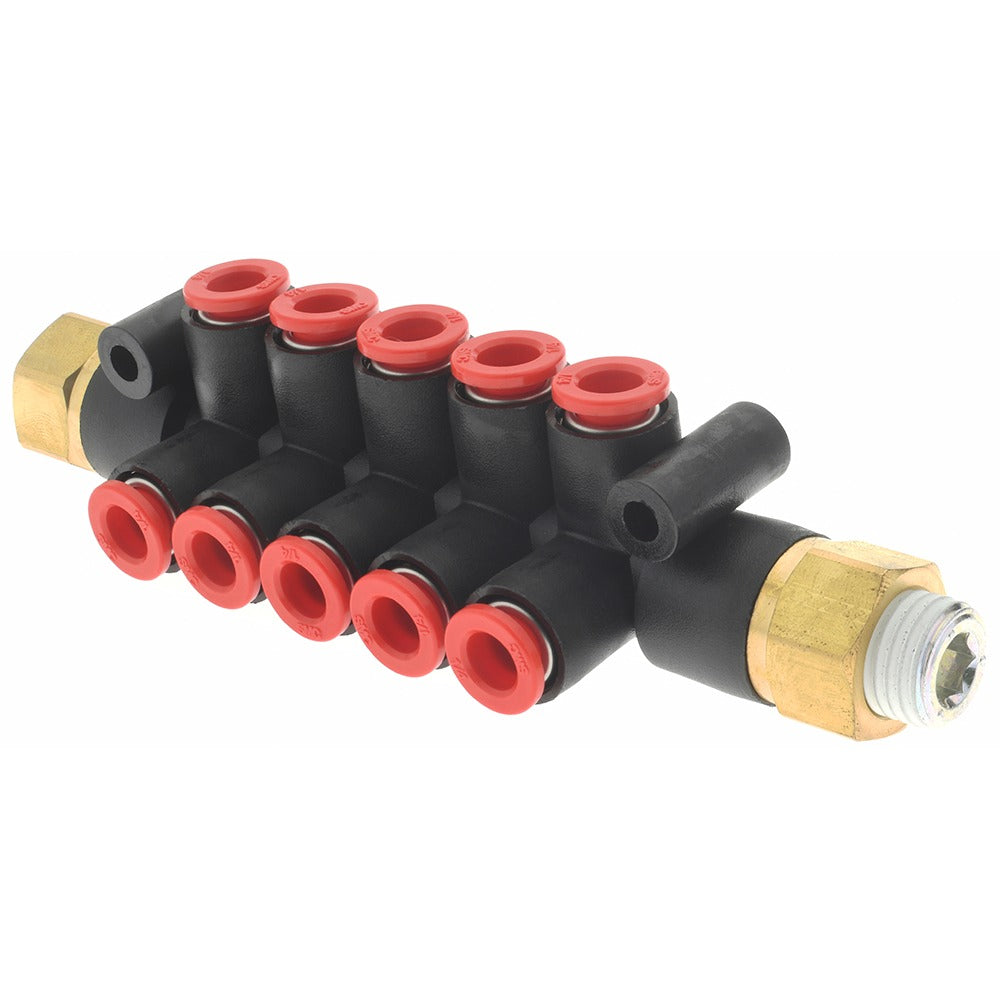

Smc Pneumatics KM12-07-35-10 Pneumatic Manifold 10-port

Product Description

The SMC PNEUMATICS KM12-07-35-10 is a multi-port pneumatic manifold designed to distribute compressed air from a single supply line to multiple downstream circuits. It features a 1/4 inch inlet and 1/4 inch outlet port sizing, with 2 inlet ports and 10 outlet ports, making it well suited for applications that require branching a pneumatic supply to several actuators, valves, or tools from one central distribution point. The body is constructed from composite Polybutylene Terephthalate (PBT), a durable engineering-grade thermoplastic that resists moisture and many common industrial chemicals. Overall body length is approximately 4.77 inches (121.20 mm). Licensed HVAC and industrial mechanics install this component in compressed air distribution systems.

This manifold is applicable in light industrial, automation, and pneumatic control panel installations where a compact, multi-outlet air distribution block is needed. It is suited for residential and commercial pneumatic systems requiring centralized distribution of compressed air to solenoid valve banks, pneumatic cylinders, or similar devices. The 10-outlet configuration reduces the need for multiple individual fittings and simplifies plumbing layouts in tight panel or enclosure spaces.

Key Features

• 10 outlet ports and 2 inlet ports allow broad distribution from a single supply line
• 1/4 inch inlet and 1/4 inch outlet port sizing for standard pneumatic fittings
• Composite Polybutylene Terephthalate (PBT) body offers chemical resistance and durability
• Compact overall length of 4.77 inches (121.20 mm) suits space-constrained installations
• Black body finish for easy visual identification in mixed-component panels

Compatibility

Designed as an OEM-style pneumatic manifold for compressed air distribution systems utilizing 1/4 inch port connections in industrial and automation applications.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial mechanic. Depressurize and lock out the compressed air supply before removing any existing fittings or manifolds. Verify that all connecting tubing and fittings match the 1/4 inch port specification before assembly. Secure the manifold per the manufacturer mounting guidelines and leak-test all connections before returning the system to service.
