Smc Pneumatics AS2301F-N01-03 Flow Control Valve 5/32 in

Product Description

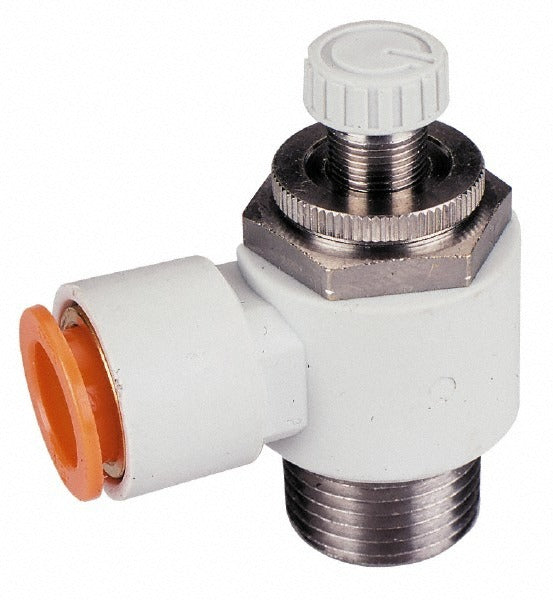

The SMC PNEUMATICS AS2301F-N01-03 is an offset inline flow control valve designed to regulate airflow and control actuator speed in pneumatic systems. It features a tube-to-male NPT connection with a 5/32 inch tube outside diameter and a 1/8 inch male NPT thread. The body is constructed from polybutylene terephthalate (PBT), a durable engineering thermoplastic suited for pneumatic environments. Flow direction is outflow, meaning the valve meters air exiting the actuator port to control extend or retract speed. This valve is installed by pneumatic system technicians and maintenance mechanics working on automated machinery, tooling, and fluid power circuits.

This valve is suited for use in compressed air circuits where precise speed control of pneumatic cylinders or actuators is required. The offset inline design allows for compact routing and easy needle adjustment in tight panel or manifold installations. It is commonly applied in industrial automation, assembly equipment, and machine tool pneumatic circuits operating within the rated temperature range of -5 degrees C to 60 degrees C.

Key Features

• Outflow speed control meters exhaust air to regulate actuator movement
• Offset inline body style enables flexible routing in space-constrained assemblies
• PBT body material offers chemical resistance and dimensional stability
• Tube x MNPT connection accepts 5/32 inch OD tubing with a 1/8 inch male NPT port
• Adjustable needle allows fine tuning of flow rate without additional tooling
• Rated operating range from -5 degrees C to 60 degrees C

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic flow and speed control applications using 5/32 inch OD tubing with 1/8 inch NPT ported equipment.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance professional. Depressurize the system and bleed residual air pressure before removing or installing any pneumatic fitting or valve. Ensure NPT threads are sealed with an appropriate thread sealant compatible with compressed air service. Do not overtighten the tube fitting or NPT connection, as PBT bodies can crack under excessive torque.
