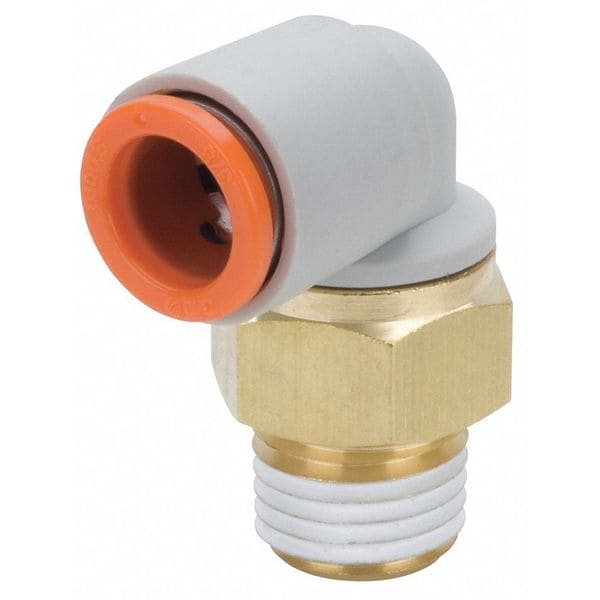

SMC KQ2L07-35AS One-Touch Fitting with Sealant 1/4 in

Product Description

The SMC KQ2L07-35AS is a one-touch fitting designed for quick and easy connections. It is suitable for 1/4 inch nominal tubes and features a push-in end style for simple installation. This fitting is made of resin, making it lightweight and durable for a variety of applications.

• Accepts nylon and polyurethane tubes.
• Stud allows rotation of the body for easy installation in small spaces.
• Release collar permits easy removal of tubing without damage.

Product Highlights

This fitting can handle a wide pressure range from low vacuum to 1.0 MPa, making it versatile. It is not intended for use in potable water systems, ensuring safe operations in industrial applications.

Product Information

Standard Information

• Brand: SMC
• MPN: KQ2L07-35AS

Technical Specifications

• Color: White/Light Gray
• Series: KQ2
• Dimensions: 30 mm length
• Connection Type: Push-In
• Pressure Rating: -100 kPa to 1 MPa
• Temperature Rating: -5 to 60 °C
• Fitting Type: Elbow
• Hex Size: 14.29 mm
