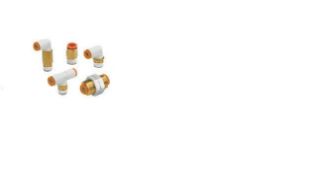

SMC KQ2L07-02AS One-Touch Fitting 1/4 in

Product Description

The SMC KQ2L07-02AS is a one-touch fitting designed for easy connection and disconnection in pneumatic systems. This fitting is compatible with tubing that has a one-quarter inch outer diameter and features a male connection thread. It is ideal for applications requiring quick assembly and maintenance.

• Compatible with various tubing materials including FEP, PFA, nylon, and polyurethane.
• Operating pressure range of negative one hundred kilopascals to one megapascals.
• Release collar allows for simple tube removal without damage.

Product Highlights

This fitting is suitable for use with air and water fluid applications. It is not intended for potable water systems.

Product Information

Standard Information

• Brand: SMC
• Manufacturer Part Number: KQ2L07-02AS

Technical Specifications

• Fitting Shape: 90 Degree Elbow
• Connection 1 Type: Push-In
• Connection 2 Type: BSP
• Overall Length: 28 mm
• Overall Diameter: 13.2 mm
• Operating Temperature Range: negative five to sixty degrees Celsius
• Max Operating Temperature: forty degrees Celsius for water, sixty degrees Celsius
• Pipe Connection Diameter: one-quarter inches
