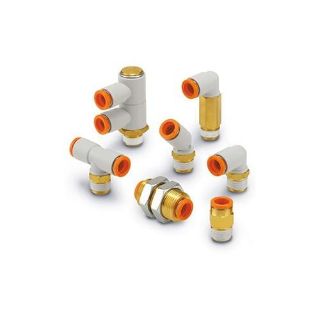

SMC KQ2H11-36AS KQ2 Push-In to Male NPT One Touch Fitting 3/8 x 3/8 in

Product Description

The SMC KQ2H11-36AS is a push-in fitting designed for pneumatic applications. It features a nominal size of three-eighths inch by three-eighths inch. The connector includes a sealant, ensuring a reliable connection for air and water applications.

• Compatible with nylon and polyurethane tubing.
• Constructed for a wide range of pressures, from low vacuum up to one mega pascal.
• Easy installation due to the release collar, making tube removal simple without damage.

Product Highlights

The SMC KQ2H11-36AS fitting is efficient for various pressure ranges. It offers a robust solution for quick connections and assemblies in pneumatic systems.

Product Information

Standard Information

• Brand: SMC
• Part Number: KQ2H11-36AS

Technical Specifications

• Material: Brass
• Color: Gray/White
• Length: 22.7 mm
• Hex Size: 17.46 mm
• Pressure Rating: -100 kPa to 1 MPa
• Temperature Rating: -5 to 60 degrees Celsius for air; 0 to 40 degrees Celsius for water
• End Style: Push-In x Male NPT
• Number of Ports: 2
