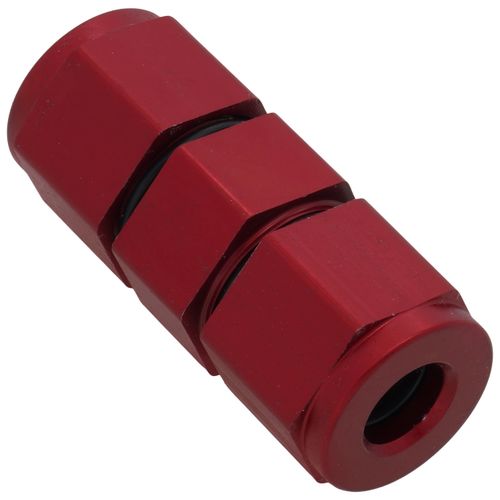

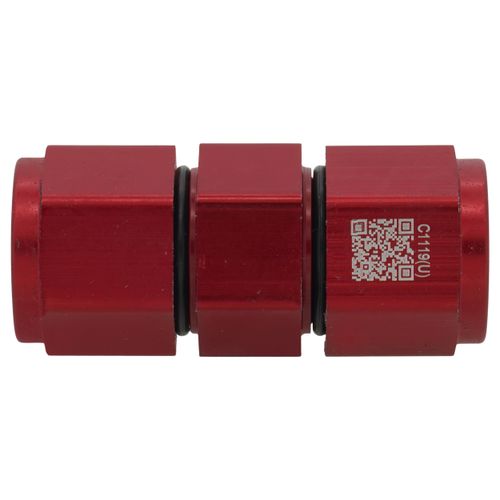

Smartlock UNST3800 Union Straight 3/8 Inch

Product Description

The SMARTLOCK UNST3800 is a union fitting designed for straight connections. It features a 3/8 inch size A and size B, with a Smart Lock x Smart Lock end connection. Suitable for air conditioning, heat pump, and refrigeration line connections. This fitting has a pressure rating of 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst).

• RoHS Compliant
• Innovative HVAC/R Fitting
• No Brazing Required

Product Highlights

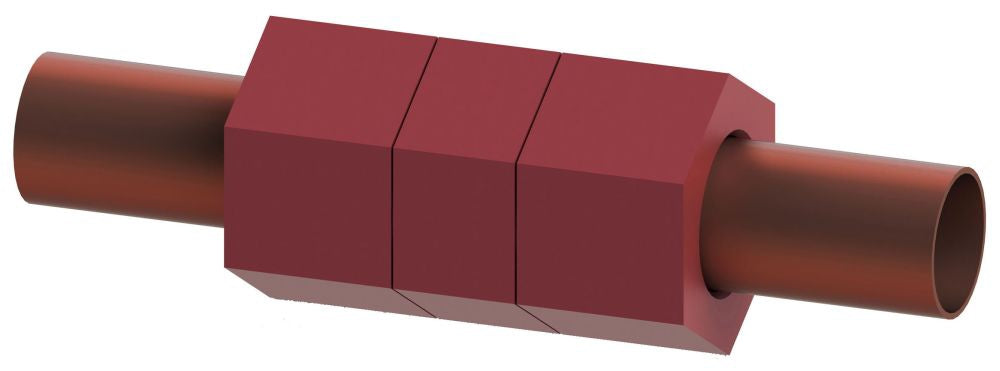

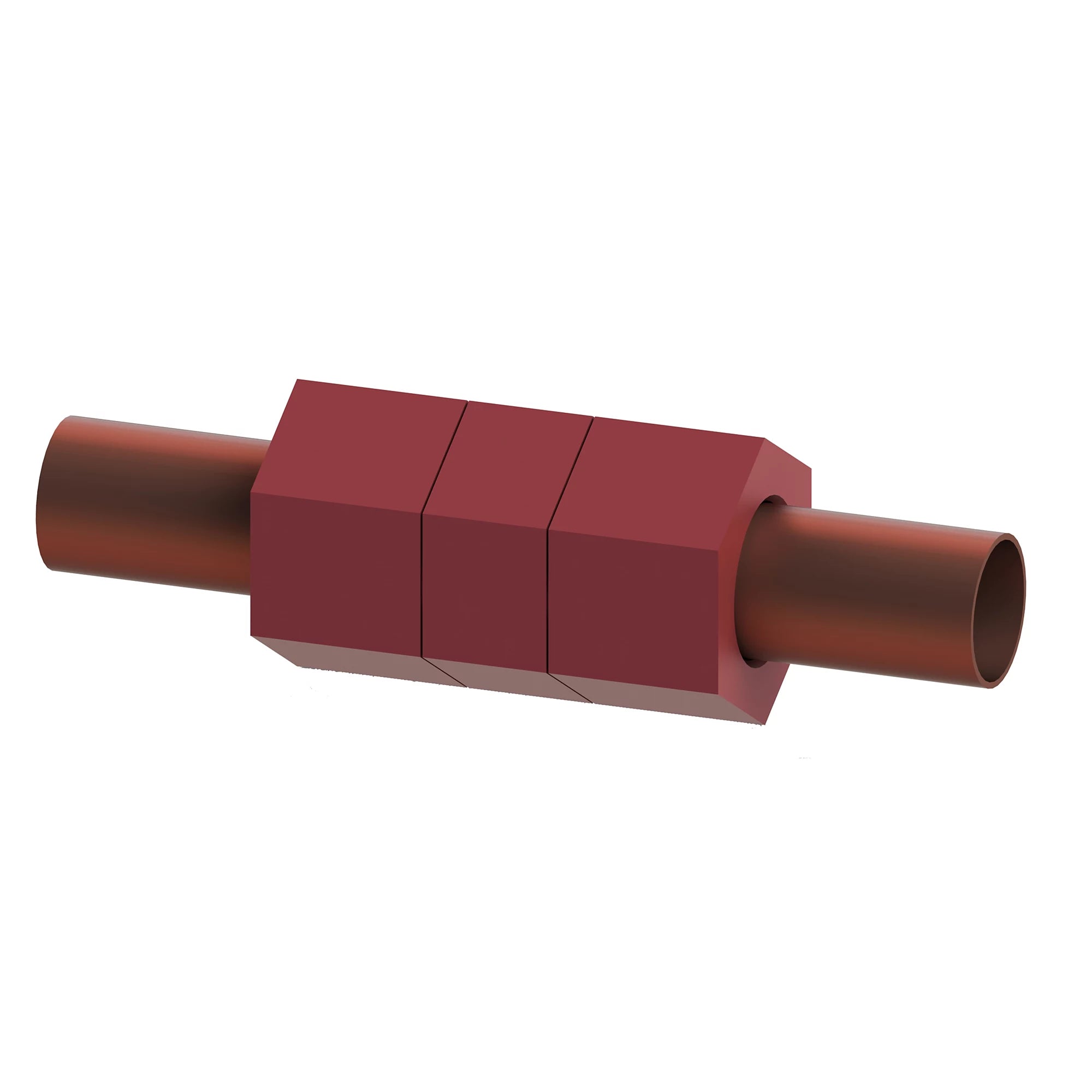

The SMARTLOCK UNST3800 union fitting connects copper/aluminum tubes without brazing or flaring, using metal-to-metal sealing technology for a permanent, zero-leak bond under pressure.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: UNST3800
• Country of Origin: KOR

Technical Specifications

• Additional Information: RoHS Compliant
• Applicable Standard: UL (Canada and US), ISO 9001
• Application: Air Conditioning, Heat Pump, Refrigeration Line Connection
• End Connection: Smart Lock x Smart Lock
• Pressure Rating: 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst)
• Temperature Rating: -40 to 150 Deg C
• Type: Straight
• Manufacturer Name: SmartLock
• Manufacturer Part Number: UNST3800
• Series/Model: UNST
• Size A: 3/8 Inch
• Size B: 3/8 Inch
• Size: 3/8"
• Fitting Type: Smartlock Straight Union
• Material: Aluminum Alloy
• Adapter Variables: Tube x Tube
• Brand: Smartlock
• Composition: Aluminum Alloy
• Nominal Size: 3/8 in
• End Style: Straight Union
• Product Type: Simple product
• SubType: Straight Union
• ABRPN: UNST3800
