Smartlock UNST1400 Union Straight 1/4 Inch

Product Description

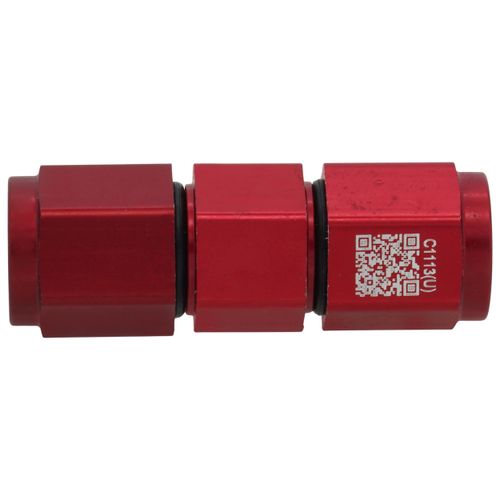

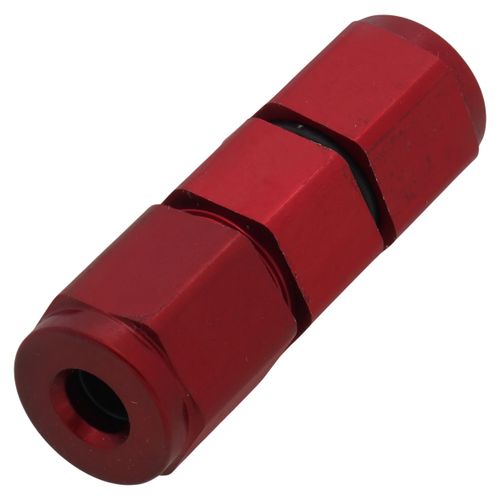

The SMARTLOCK UNST1400 is a union fitting with a straight type, designed to connect copper or aluminum tubes without brazing or flaring. It features a 1/4 inch size A and size B, with a smart lock x smart lock end connection. Suitable for air conditioning, heat pump, and refrigeration line connections.

• RoHS Compliant

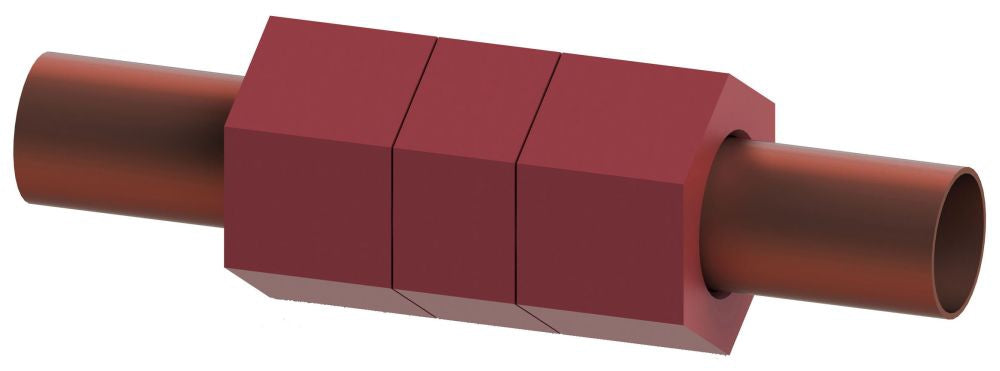

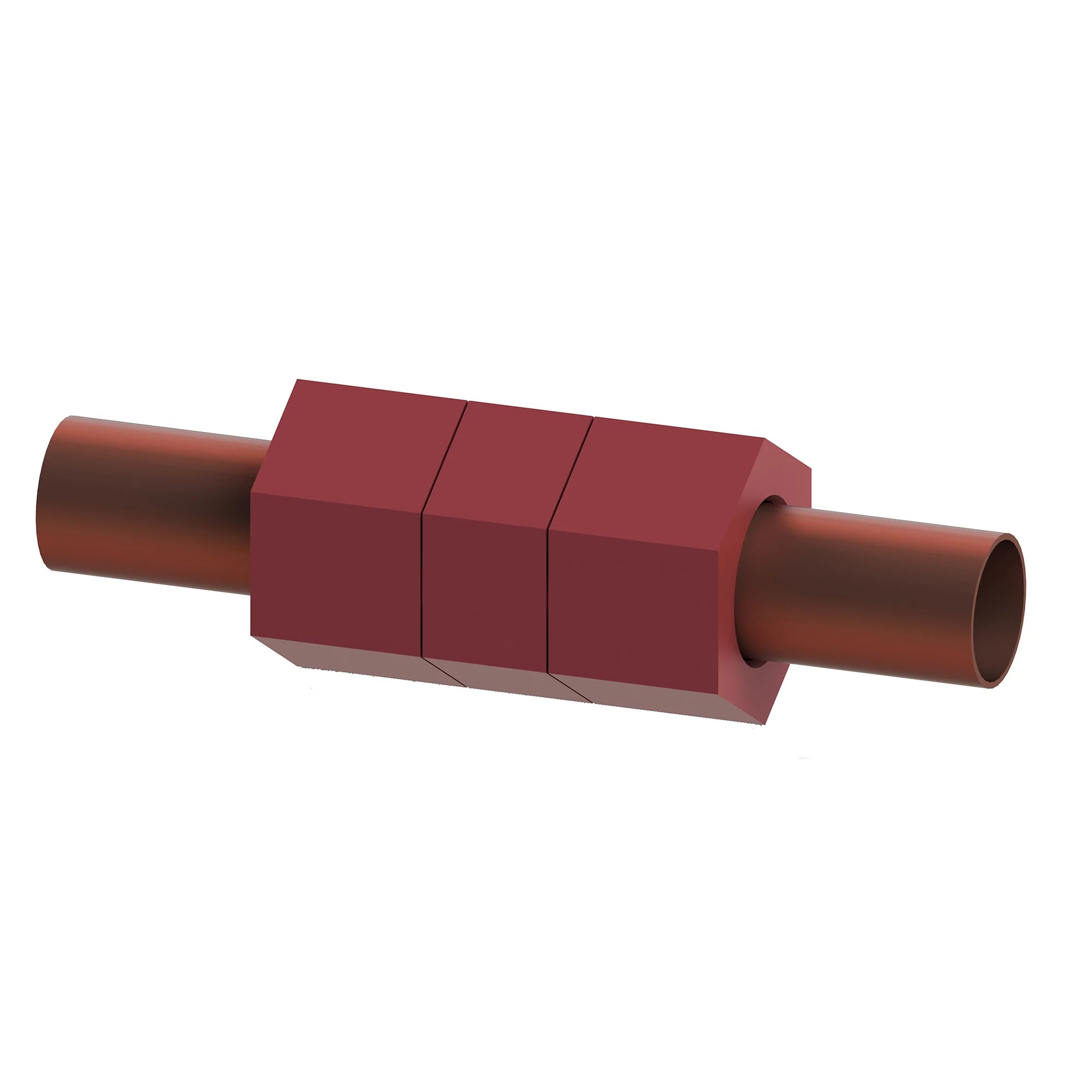

• Connects copper/aluminum tube to copper/aluminum tube of the same size without the need for welding
• No brazing or flaring required. Tighten nuts to seal tubes without heat or flame.

Product Highlights

The Smartlock UNST1400 union fitting provides a secure and permanent seal designed to produce zero leaks, compatible with ALL refrigerants on the market.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: UNST1400
• Country of Origin: KOR

Technical Specifications

• Applicable Standard: UL (Canada and US), ISO 9001
• Application: Air Conditioning, Heat Pump, Refrigeration Line Connection
• End Connection: Smart Lock x Smart Lock
• Pressure Rating: 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst)
• Size A: 1/4 Inch
• Size B: 1/4 Inch
• Temperature Rating: -40 to 150 Deg C
• Type: Straight
• Additional Information: RoHS Compliant
• Series/Model: UNST
• UNSPSC Code: 40183103
• Manufacturer Name: SmartLock
• Manufacturer Part Number: UNST1400
• Nominal Size: 1/4 in
• Material: Aluminum Alloy
• Size: 1/4 in
• Finish: Red
