Smartlock UNRD7834 Union Reducer 7/8 inches x 3/4 inches

Product Description

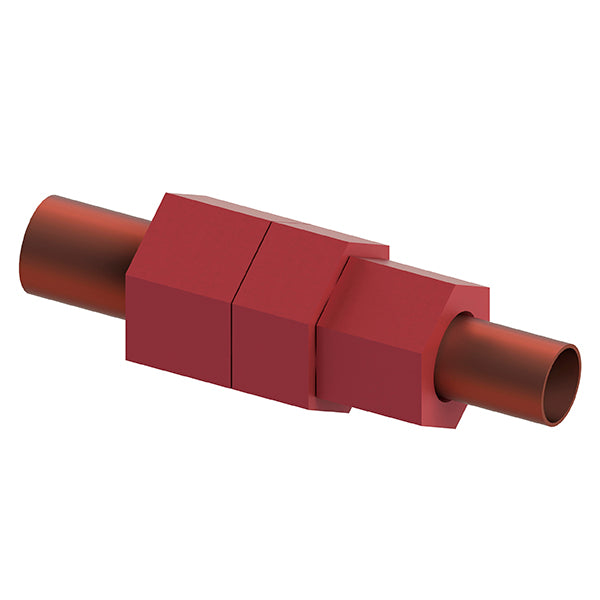

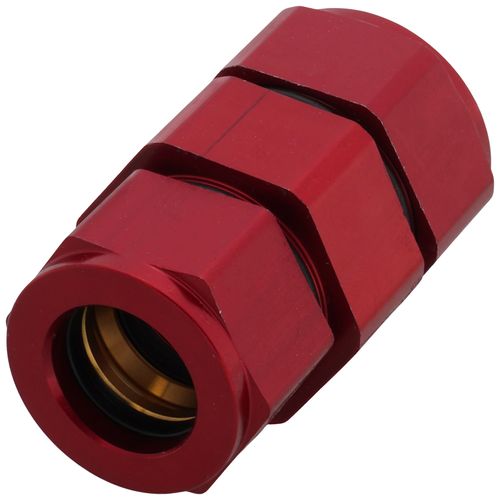

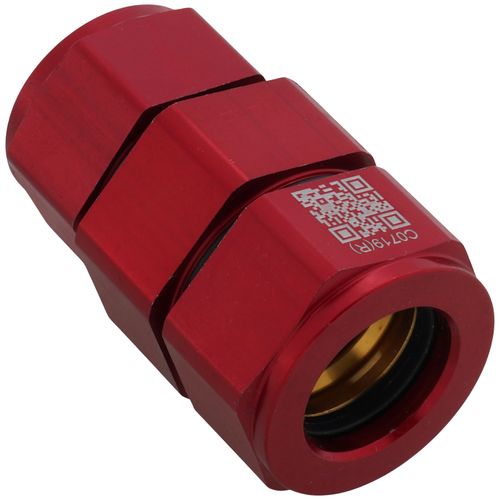

The SMARTLOCK UNRD7834 union reducer joins a 7/8" tube to a 3/4" tube without brazing or flaring. It utilizes patented metal-to-metal sealing technology for permanent, zero-leak joints under pressure. Standard wrenches align and tighten components automatically, allowing technicians to skip open flames and finish jobs faster.

• No brazing or flaring required; tighten nuts to seal tubes without heat or flame.
• Automatic alignment; positioning strip holds ferrules and body in perfect alignment for smooth assembly.
• Metal-to-metal seal; compression ferrules deform to seal under high pressure for lasting, leak-free joints.

Product Highlights

This union reducer is compatible with all common refrigerants and suitable for copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum connections.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: UNRD7834

Technical Specifications

• Size: 7/8", 3/4"
• Material: Aluminum Alloy
• Shape: Reducer
• P1 Size: 7/8
• P2 Size: 3/4
• Nominal Size: 7/8 x 3/4 in
• Burst Pressure Range: 4800 psi
• End Style: Union
• Fitting / Connector Type: Reducing Coupling
• Manufacturer: SmartLock
• Manufacturer #: UNRD7834
• Pressure Rating: 960 psi
• Temperature Rating: -40 to 302 deg F
