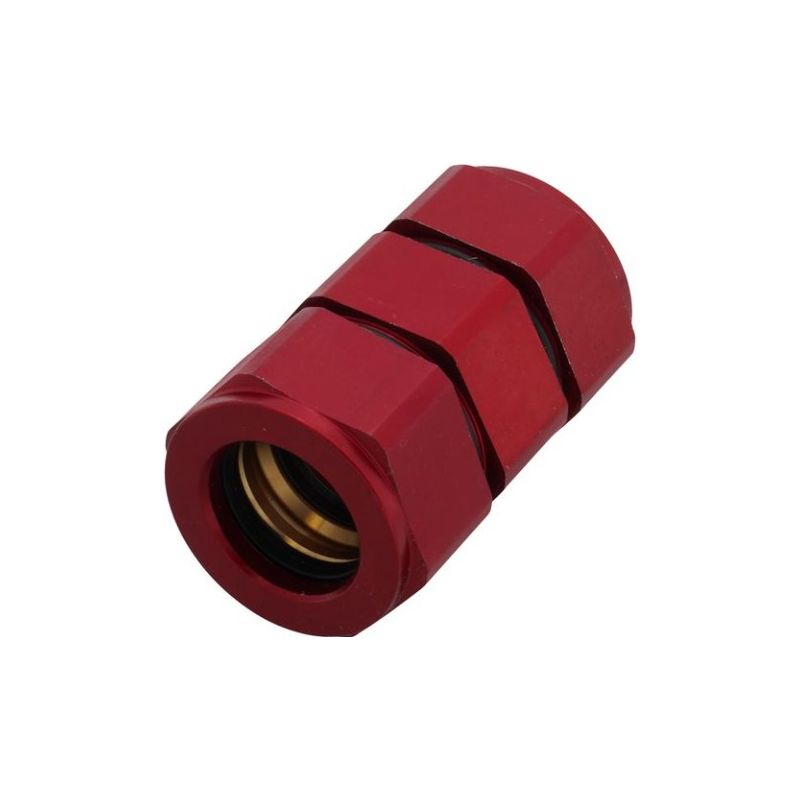

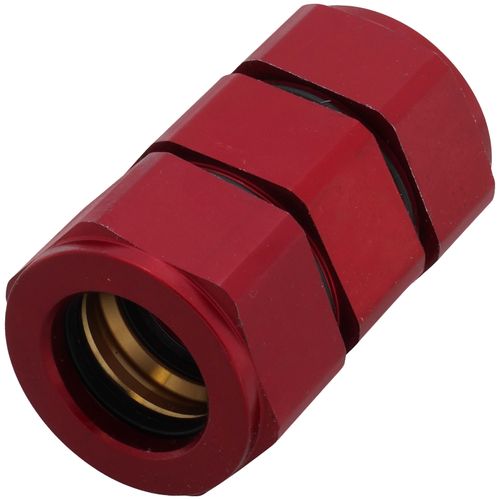

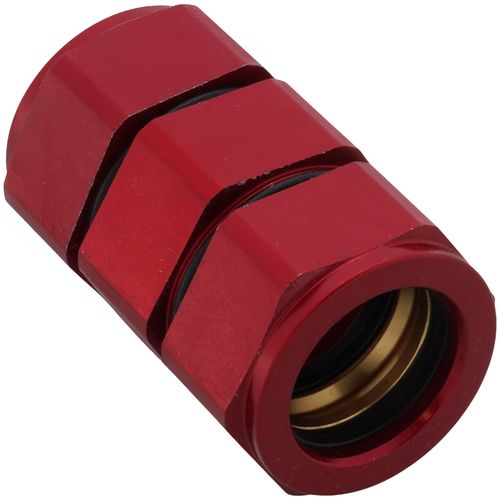

Smartlock SWUN7800 Swage Union 7/8 Inch

Product Description

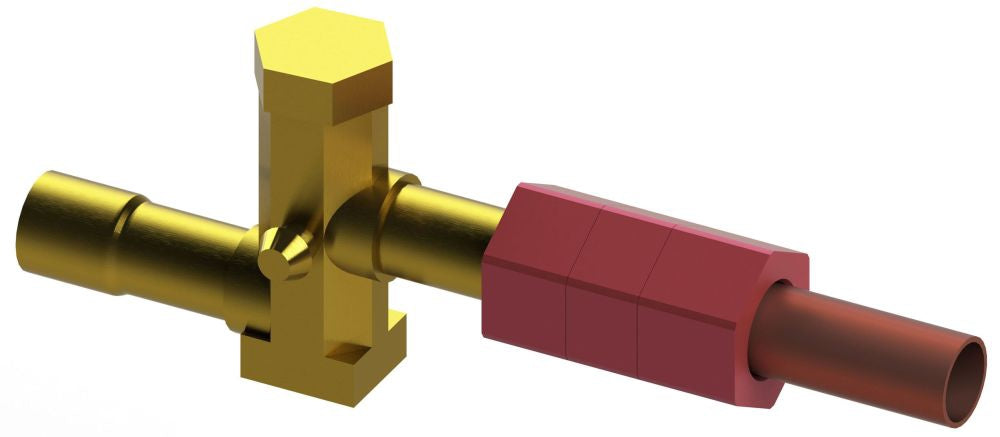

The SMARTLOCK SWUN7800 is a 7/8 Inch swage union fitting with straight, swage type. Featuring Smart Lock x Smart Lock end connections, it connects swage valves to copper or aluminum tube without the need for brazing. It is suitable for air conditioning, heat pump, and refrigeration line connections.

• No Welding, No Flaring, No Leaking
• RoHS Compliant
• Innovative HVAC/R Fitting

Product Highlights

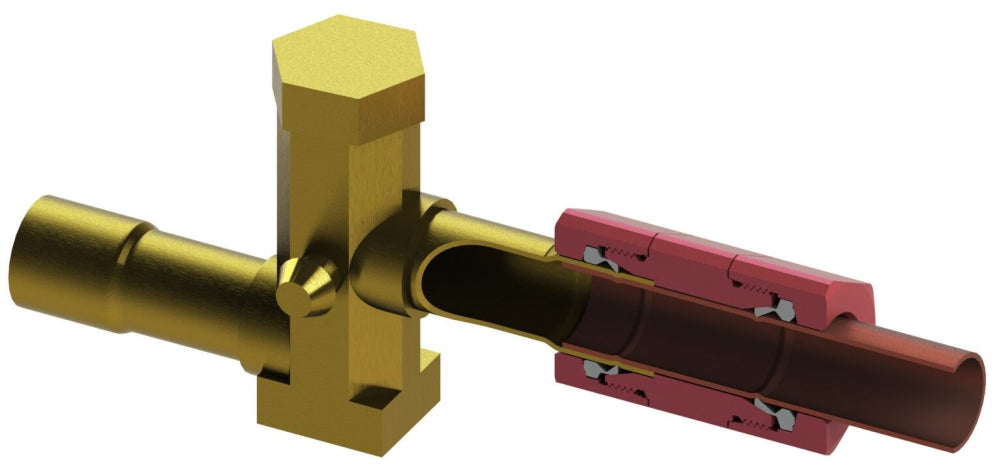

The SMARTLOCK SWUN7800 swage union provides secure and permanent seal designed to produce zero leaks. It uses metal to metal sealing technology and is compatible with ALL refrigerants on the market.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: SWUN7800

Technical Specifications

• Applicable Standard: UL (Canada and US), ISO 9001
• Application: Air Conditioning, Heat Pump, Refrigeration Line Connection
• End Connection: Smart Lock x Smart Lock
• Pressure Rating: 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst)
• Temperature Rating: -40 to 150 Deg C
• Type: Straight, Swage
• Size A: 7/8 Inch
• Size B: 7/8 Inch
• Size: 7/8"
• Material: Aluminum Alloy
• Nominal Size: 7/8 in
