Product Description

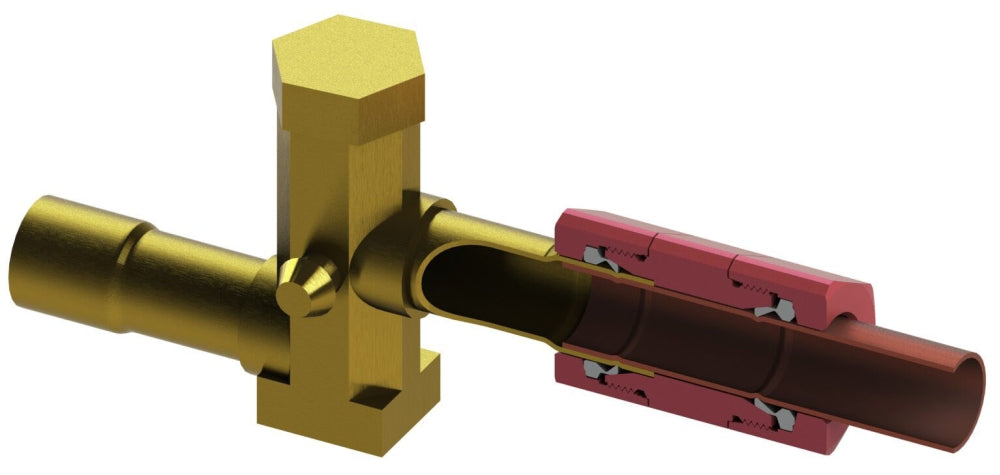

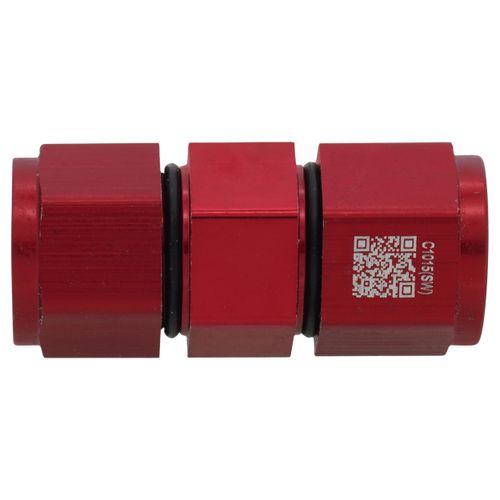

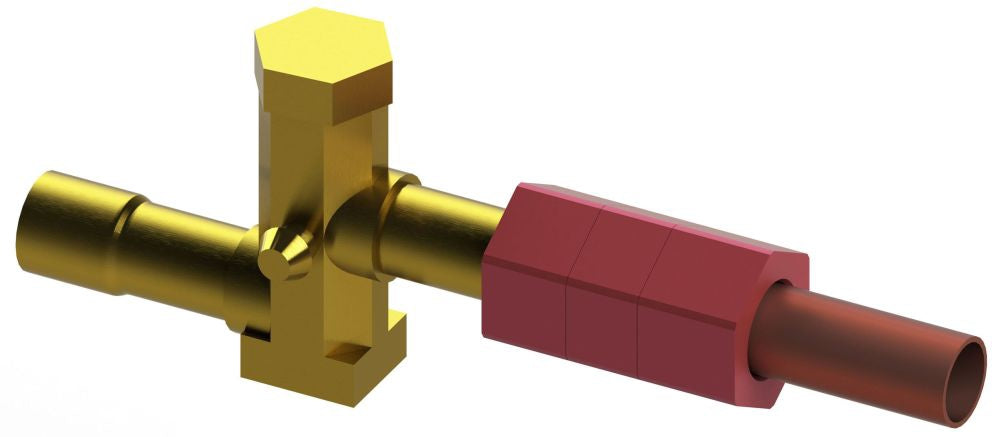

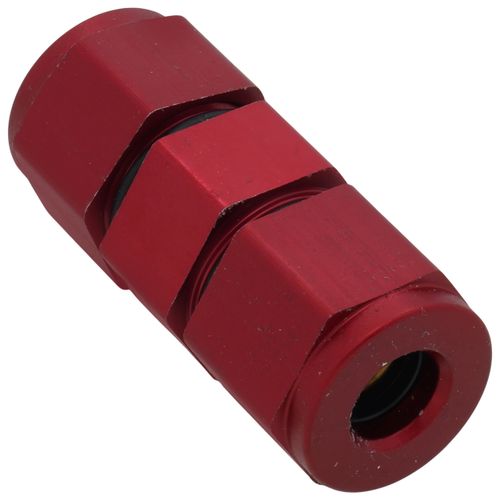

The SMARTLOCK SWUN3800 swage union connects swage valves to copper or aluminum tubes without brazing. It is a straight, swage type fitting with 3/8 inch size A and B end connections of Smart Lock x Smart Lock. This fitting is designed for air conditioning, heat pump, and refrigeration line connections.
- No Welding, No Flaring, No Leaking
- Metal to Metal Sealing Technology achieves a secure and permanent seal
- Compatible with ALL refrigerants
Product Highlights
The Smartlock swage union connects without brazing, requires no special tools, and is RoHS compliant.
Product Information
Standard Information
-
Brand: SMARTLOCK
-
Manufacturer Part Number: SWUN3800
-
Country of Origin: China
Technical Specifications
-
Applicable Standard: UL (Canada and US), ISO 9001
-
Application: Air Conditioning, Heat Pump, Refrigeration Line Connection
-
End Connection: Smart Lock x Smart Lock
-
Pressure Rating: 1600 psig
-
Temperature Rating: -40 to 302 deg F
-
Type: Straight, Swage
-
Size A: 3/8 Inch
-
Size B: 3/8 Inch
-
Additional Information: RoHS Compliant
-
Manufacturer Name: SmartLock
-
Manufacturer Part Number: SWUN3800
-
Series/Model: SWUN
-
UNSPSC Code: 40183103
-
Nominal Size: 3/8 in
-
Size: 3/8"
-
Fitting Type: Smartlock Swage Union
-
Material: Brass
-
Burst Pressure Range: 8500 psig
-
End Style: Swage Union
-
Manufacturer: SmartLock
-
Brand: SmartLock
-
End B Diameter: 1 1/4 in
-
Fitting Shape: Union
-
End C Diameter (for Tees): 3/8 in
-
End A Diameter: 3/8 in
-
End C (for Tees): Compression
-
End A-to-End B: Compression-to-Compression
-
Country of Origin: China
