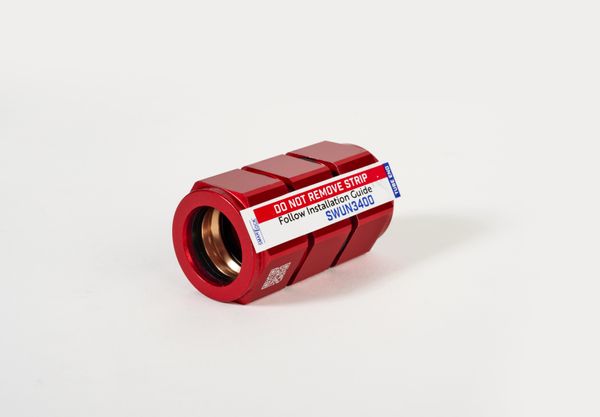

Smartlock SWUN3400 Swage Union 3/4 Inch

Product Description

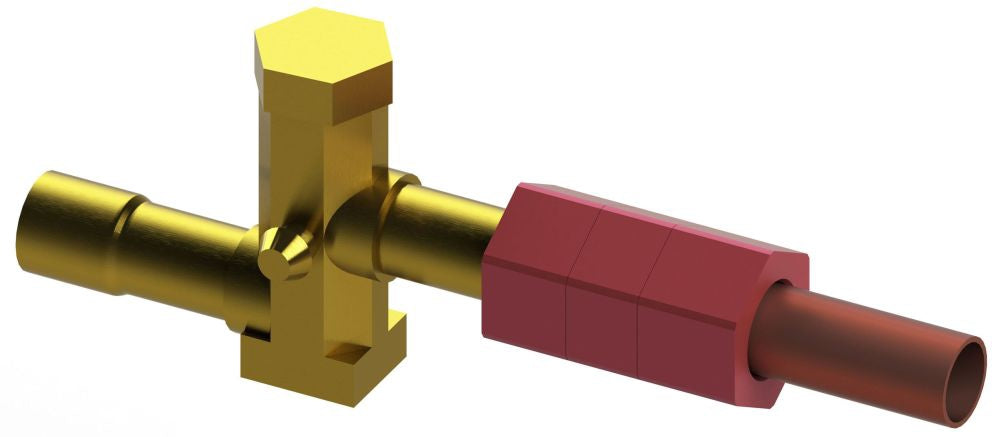

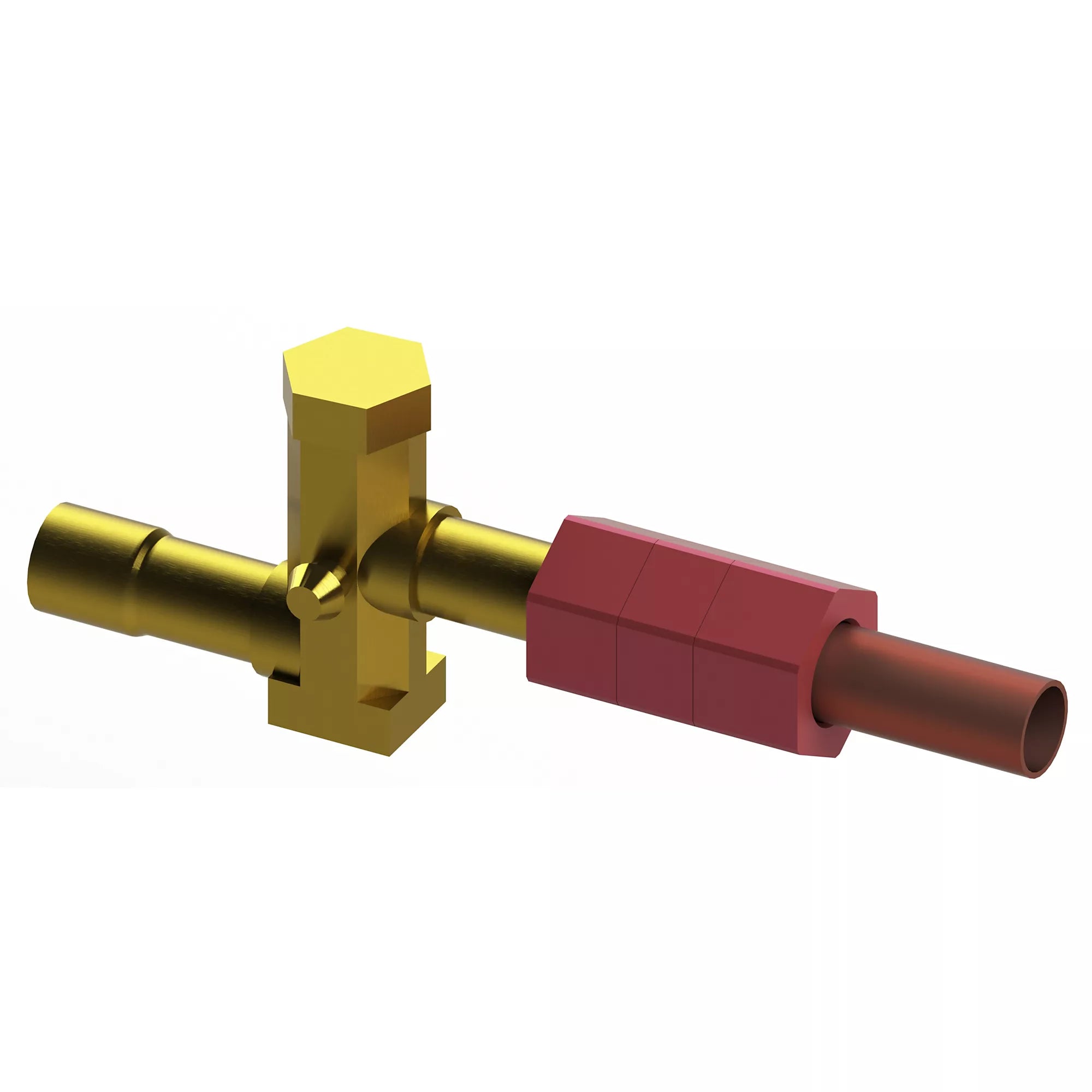

The SMARTLOCK SWUN3400 is a 3/4 inch swage union designed to connect swage valves to copper or aluminum tubes without brazing. It connects copper or aluminum tubes to swage valves without the need of welding or flaring. SmartLock fittings are compatible with all refrigerants on the market.

• No Welding
• No Flaring
• No Leaking
• RoHS Compliant

Product Highlights

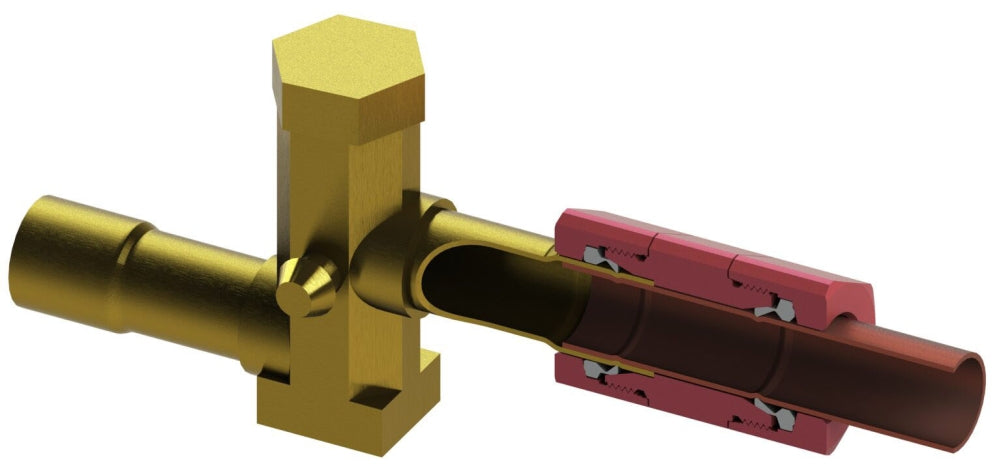

The SWUN3400 swage union uses metal-to-metal sealing technology to achieve a secure and permanent seal that is designed to produce zero leaks.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: SWUN3400
• Country of Origin: KOR

Technical Specifications

• Applicable Standard: UL (Canada and US), ISO 9001
• Application: Air Conditioning, Heat Pump, Refrigeration Line Connection
• End Connection: Smart Lock x Smart Lock
• Pressure Rating: 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst)
• Temperature Rating: -40 to 150 Deg C
• Type: Straight, Swage
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Brand: SMARTLOCK
• MPN: SWUN3400
• Fitting Type: Union
• Composition: Aluminum Alloy
• Nominal Size: 3/4 in
• End Style: Swage Union
• Manufacturer: SmartLock
• Manufacturer #: SWUN3400
• Fitting Size 1: 3/4 in.
• Fitting Size 2: 3/4 in.
• Fitting Sizes: 3/4 in. x 3/4 in.
