Smartlock FCMA5800 Flare Connector 5/8 Inch

Product Description

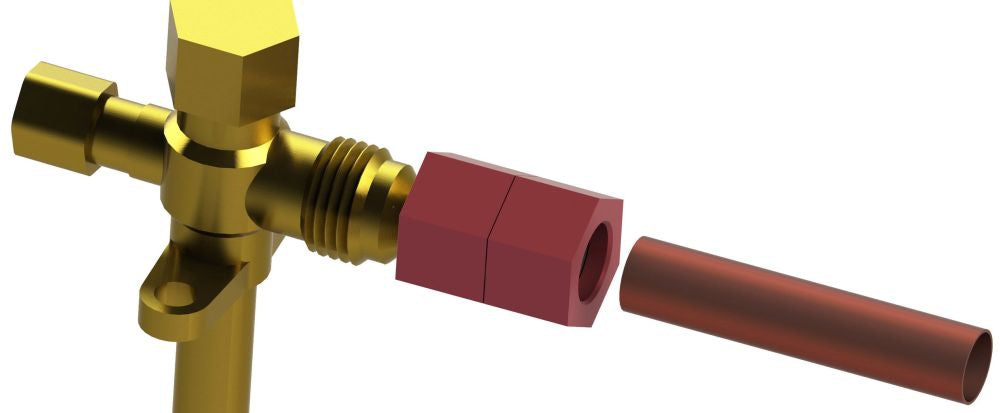

The Smartlock FCMA5800 is a straight, multi-angle flare connector fitting. Size A and Size B are both 5/8 Inch. It features a Smart Lock x Smart Lock end connection. Suitable for air conditioning, heat pump, and refrigeration line connections. It is also RoHS compliant.

• No Welding
• No Flaring
• No Leaking
• RoHS Compliant

Product Highlights

The Smartlock FCMA5800 flare connector is an innovative HVAC/R fitting that requires no brazing or flaring.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: FCMA5800

Technical Specifications

• Applicable Standard: UL (Canada and US), ISO 9001
• Application: Air Conditioning, Heat Pump, Refrigeration Line Connection, HVAC/R Line Connection, Mini-Split and Refrigerant System
• End Connection: Smart Lock x Smart Lock, Flare x Flare
• Pressure Rating: 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst)
• Temperature Rating: -40 to 150 Deg C
• Type: Straight, Multi-Angle Flare, Multi-Angle
• Size A: 5/8 Inch
• Size B: 5/8 Inch
• Additional Information: RoHS Compliant
• Features/Benefits: No Welding, No Flaring, No Leaking; RoHS Compliant
• Manufacturer Name: SmartLock
• Manufacturer Part Number: FCMA5800
• Series/Model: FCMA
• Nominal Size: 5/8 in
• Fitting Type: Flare Connector Multi Angle, Connector
• Material: Brass
• Connection Size 1: 5/8 in
• Connection Size 2: 5/8 in
• Connection Size 3: 5/8 in
• Connection Type: Flared|Flared|Flared
• Burst Pressure Range: 6800 psig
• End Style: Flare
