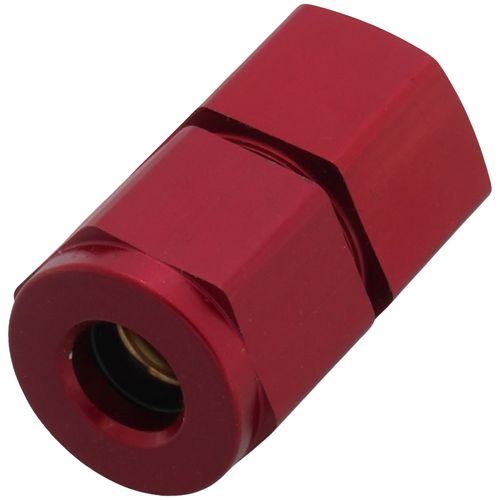

Smartlock FCMA3800 Flare Connector 3/8 Inch

Product Description

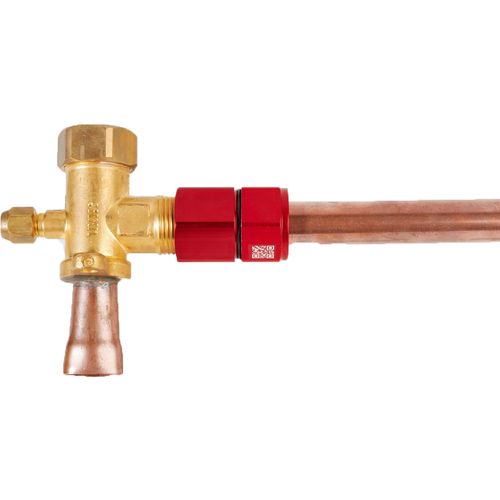

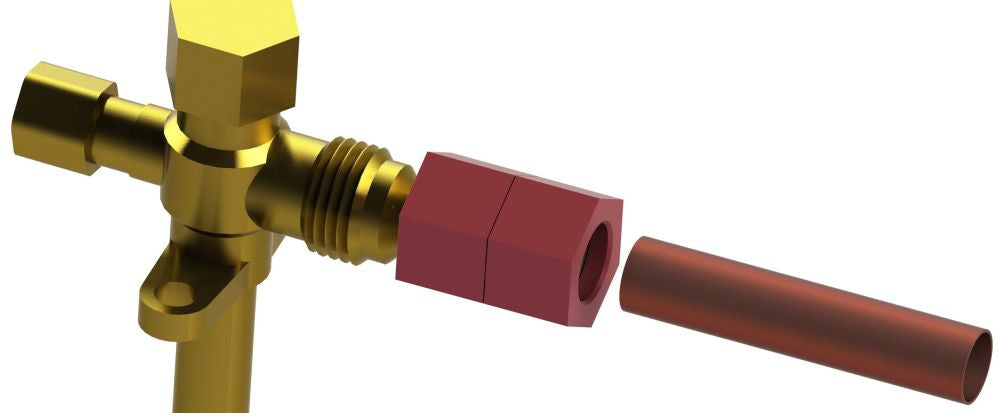

The SMARTLOCK FCMA3800 is a flare connector designed for connecting tube to flare valves without welding or flaring. This multi-angle flare connector features a 3/8 inch size and Smart Lock x Smart Lock end connections. Suitable for air conditioning, heat pump, and refrigeration line connections.

• No Welding
• No Flaring
• No Leaking
• RoHS Compliant

Product Highlights

The FCMA3800 flare connector provides a secure, leak-free connection for HVAC/R systems, eliminating the need for traditional welding or flaring methods.

Product Information

Standard Information

• Brand: SMARTLOCK
• Manufacturer Part Number: FCMA3800

Technical Specifications

• Applicable Standard: UL (Canada and US), ISO 9001
• Application: Air Conditioning, Heat Pump, Refrigeration Line Connection
• End Connection: Smart Lock x Smart Lock
• Pressure Rating: 960 to 1700 PSIG (Design), 4800 to 9700 PSIG (Burst)
• Temperature Rating: -40 to 150 Deg C
• Type: Straight, Multi-Angle Flare
• Size A: 3/8 Inch
• Size B: 3/8 Inch
• Additional Information: RoHS Compliant
• Manufacturer Name: SmartLock
• Manufacturer Part Number: FCMA3800
• Series/Model: FCMA
• UNSPSC Code: 40183110
• Material: Aluminum Alloy
• Outer Diameter: 0.375 Inch
• Torque Rating: 25.5 Foot-Pound
