Product Description

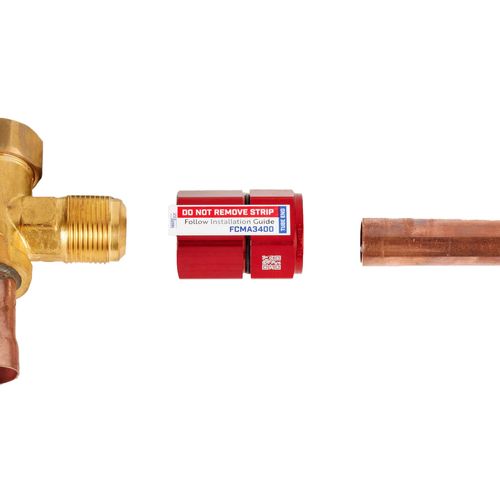

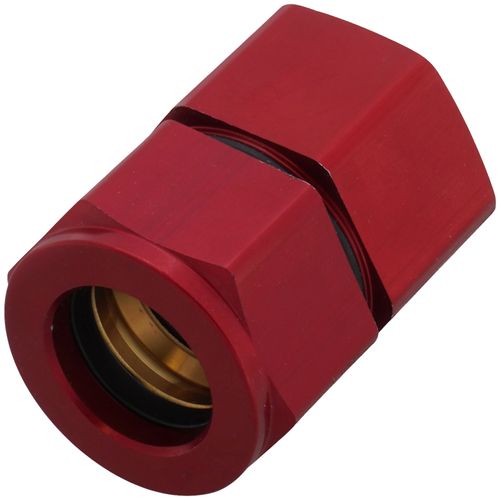

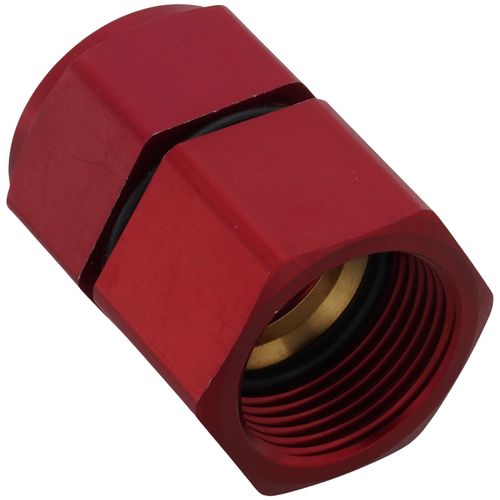

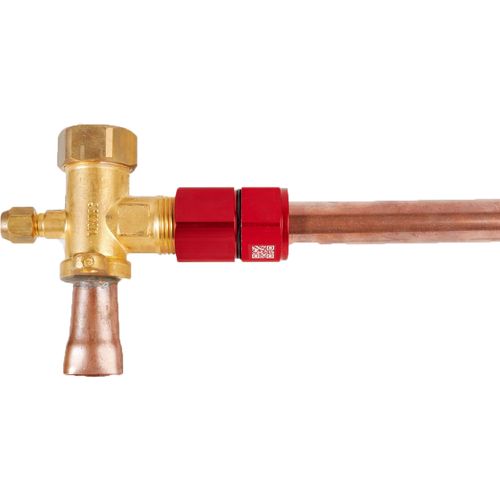

The Smartlock FCMA3400 flare connector multi angle is a fitting designed for HVAC/R line connections. This innovative fitting solution connects flare valves to copper or aluminum tubes without the need for flaring or brazing. It utilizes metal-to-metal sealing technology for secure, leak-free joints under pressure.
- Innovative HVAC/R Fitting
- No Brazing
- No Flaring
Product Highlights
The Smartlock FCMA3400 offers a high-pressure quick connection for HVAC/R systems, ensuring secure and leak-free performance.
Product Information
Standard Information
-
Brand: SMARTLOCK
-
Manufacturer Part Number: FCMA3400
Technical Specifications
-
Size: 3/4"
-
Fitting Type: Flare Connector Multi Angle
-
Material: Aluminum Alloy
-
Type: Multi-Angle
-
Size A: 3/4 Inch
-
Size B: 3/4 Inch
-
End Connection: Flare x Flare
-
Pressure Rating: 1700 to 960 PSIG (Design), 9700 to 4800 PSIG (Burst)
-
Temperature Rating: -40 to 302 Deg F
-
Application: HVAC/R Line Connection, Mini-Split and Refrigerant System
-
Applicable Standard: UL (Canada and US), ISO 9001
-
Nominal Size: 3/4 in
-
Series: FCMA
-
Tube Size: 3/4
-
Temperature Range: -40
F to 302
F
-
Tube Compatibility: Copper (Soft and Hard Copper), Aluminum
-
Pressure Range for 1/4": Design Pressure 1700 psig, Burst Pressure 9,700 psig
-
Pressure Range for 3/8": Design Pressure 1,600 psig, Burst Pressure 8,500 psig
-
Pressure Range for 1/2": Design Pressure 1,300 psig, Burst Pressure 1,300 psig
-
Pressure Range for 5/8": Design Pressure 1,300 psig, Burst Pressure 6,800 psig
-
Pressure Range for 3/4": Design Pressure 960 psig, Burst Pressure 4,800 psig
