Smart Electric USA SCM5411D 4 to 30 W 110 to 240 VAC 50/60 Hz

Product Description

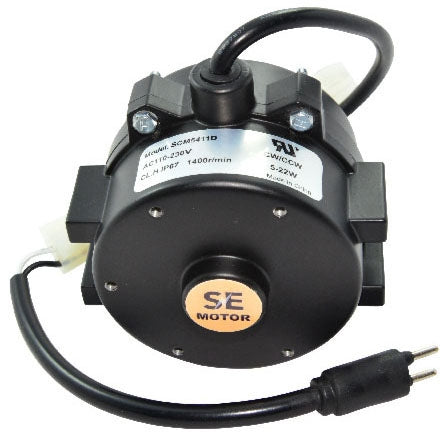

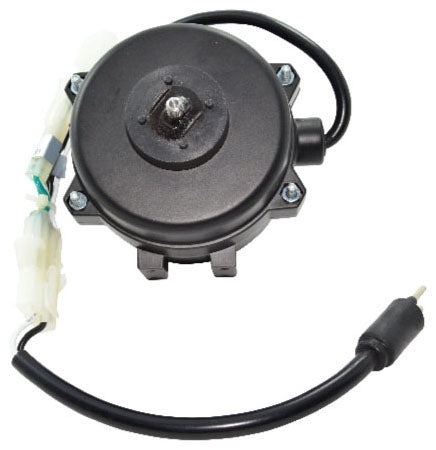

The Smart Electric USA SCM5411D is an ECM watt motor designed for various HVAC applications. It operates with a power rating ranging from four to thirty watts and is suitable for voltages between one hundred ten to two hundred forty VAC.

• Power Rating: 4 to 30 Watt
• Voltage Rating: 110 to 240 VAC
• Speed Rating: 1300 to 1600 RPM

Product Highlights

This motor features reversible rotation and is efficient, making it ideal for use in evaporator and condenser units.

Product Information

Standard Information

• Manufacturer: Smart Electric USA
• Application: Evaporator and Condenser

Technical Specifications

• Motor FLA: 0.08 to 0.35 Amp
• Frequency Rating: 50/60 Hertz
• Efficiency: 70 Percent
• Frame Material: Aluminum
• Rotational Type: Clockwise/Counter Clockwise
• Operating Temperature Rating: -40 to 158 Deg F
• Standard Shaft Size: 1/4 Inch-20 TPI
