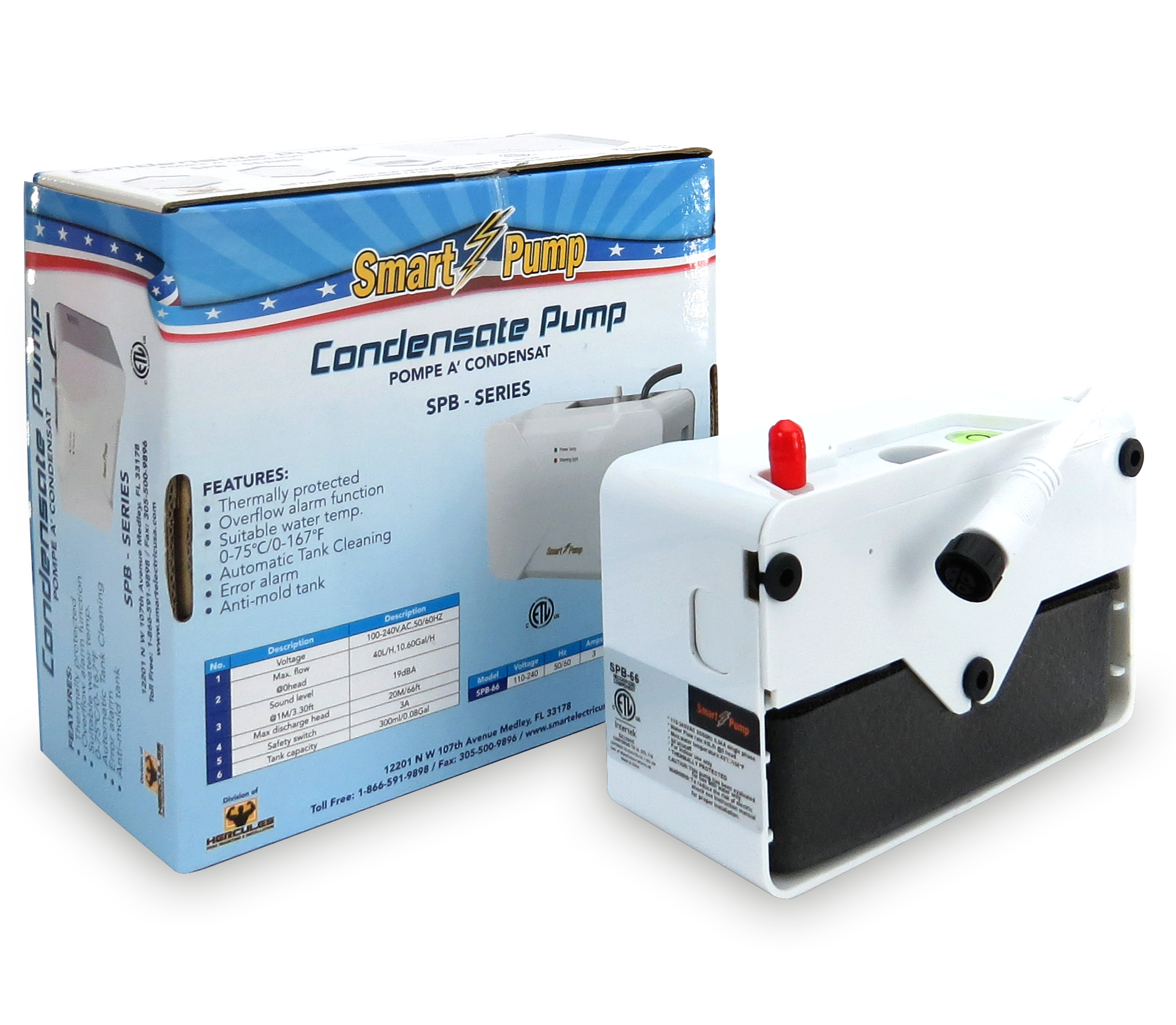

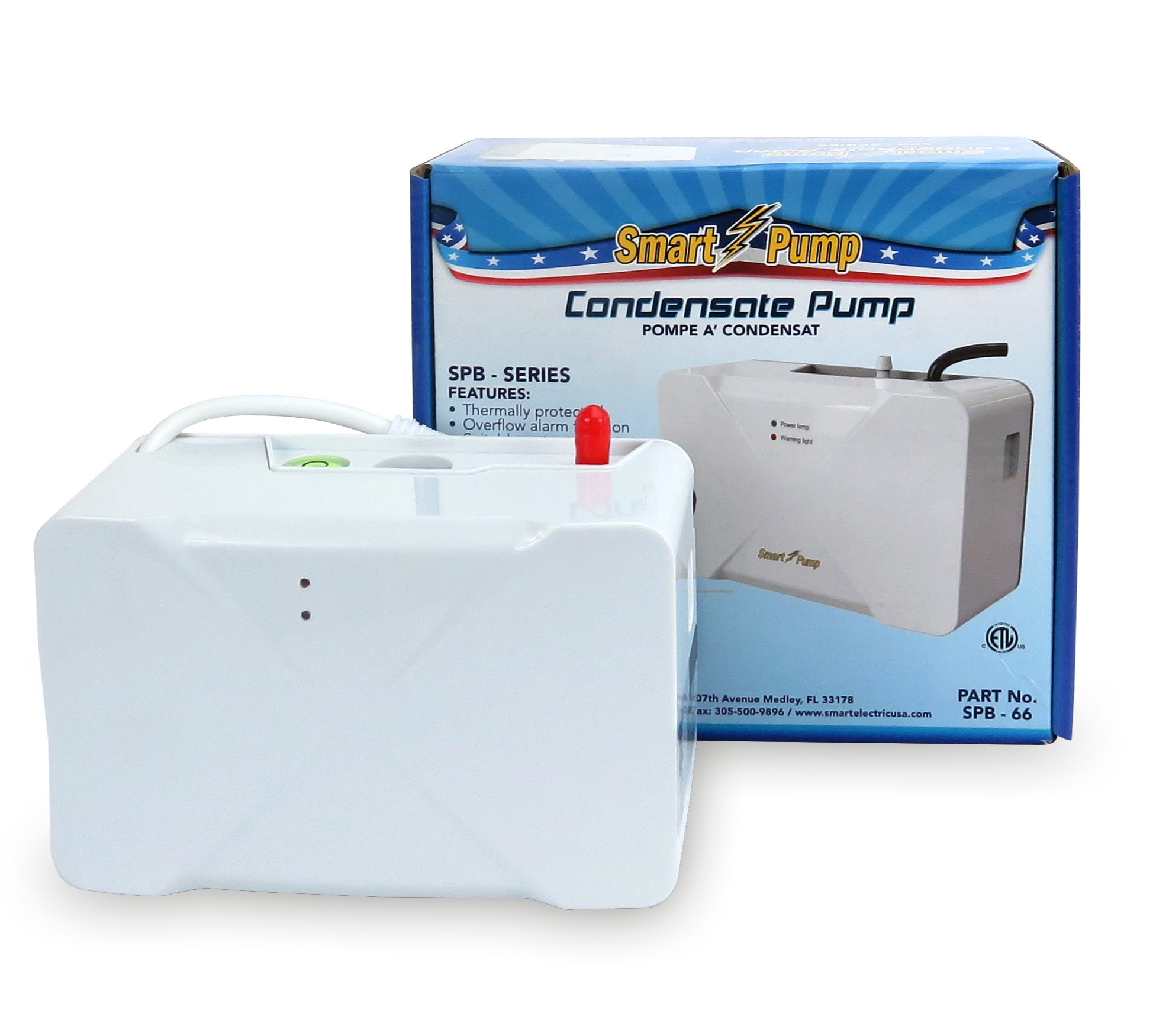

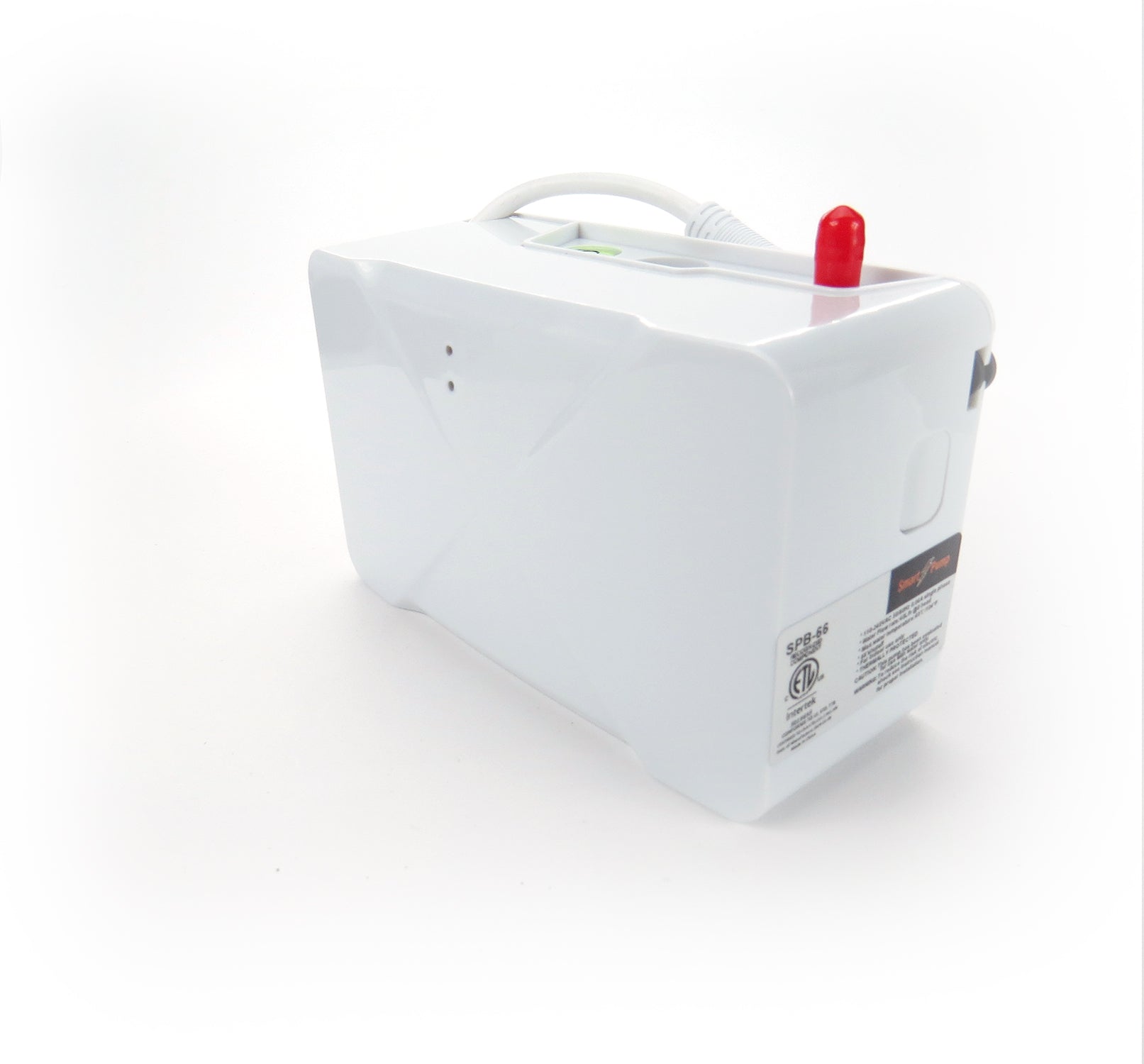

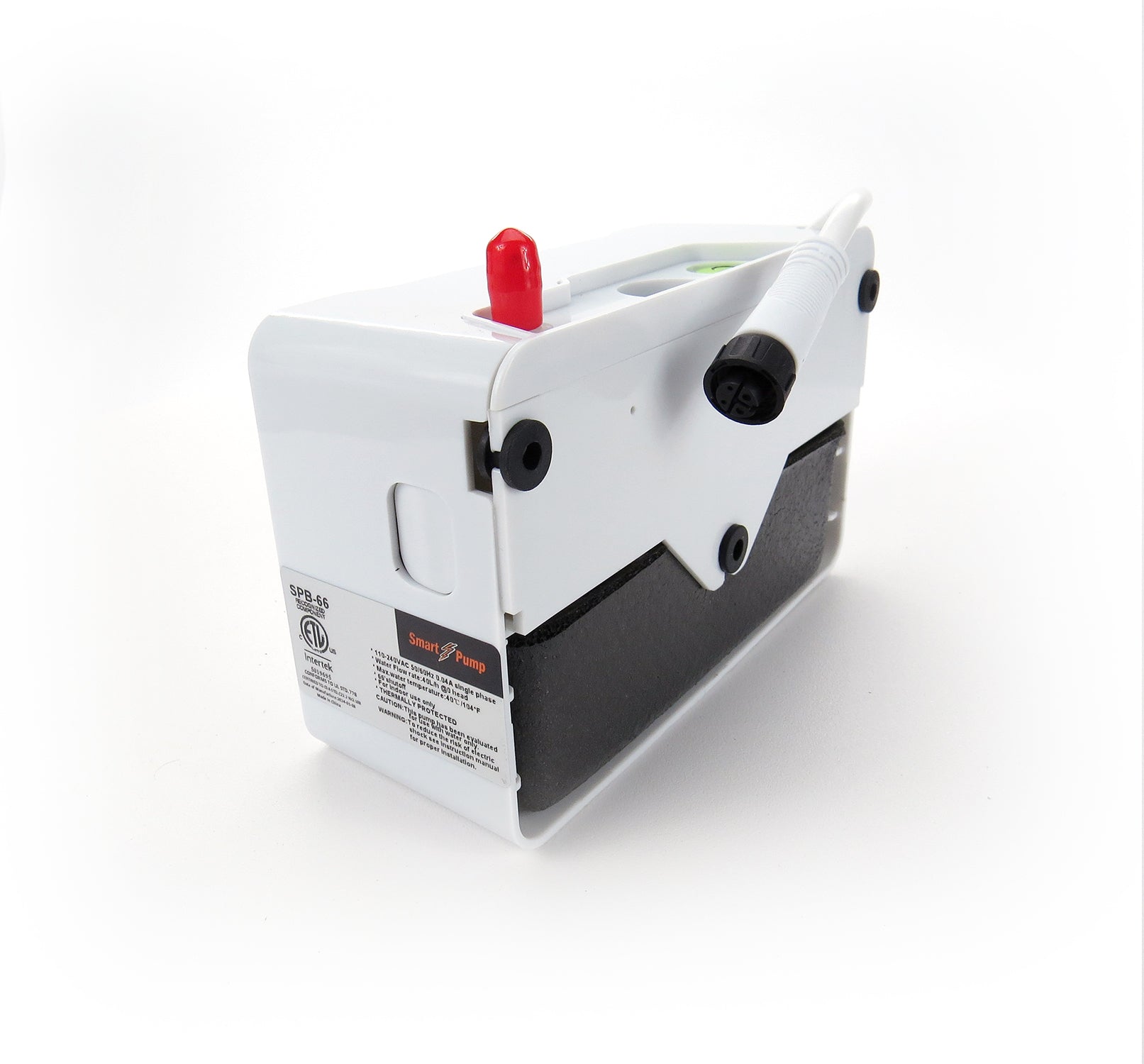

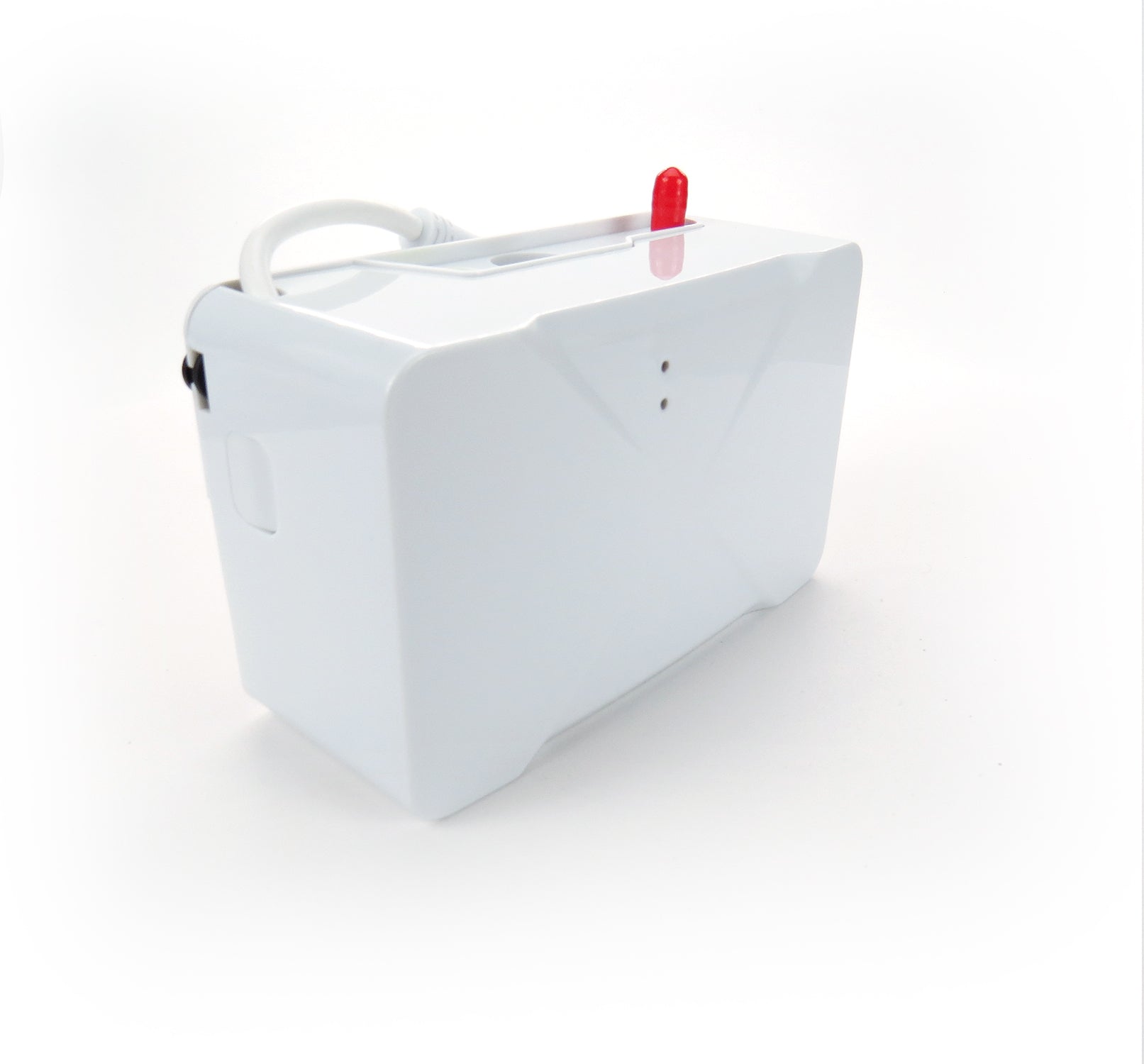

Smart Electric SPB-66 Mini Split Condensate Pump 3.3ft Lift, 10.6 Gal/H

Product Description

The SMART ELECTRIC SPB-66 Mini Split Condensate Pump efficiently removes condensate water from mini-split HVAC systems. It features thermally protected operation, an overflow alarm to prevent water damage, and automatic tank cleaning. The anti-mold tank ensures long-lasting performance. Suitable for water temperatures from 0–70°C (158°F), this ETL certified pump is designed for safe installation.

• Thermally protected operation
• Overflow alarm to prevent water damage
• Automatic tank cleaning

Product Highlights

ETL certified condensate pump with anti-mold tank and error alarm function, ideal for mini-split HVAC systems.

Product Information

Standard Information

• Brand: SMART ELECTRIC
• Manufacturer Part Number: SPB-66
• Country of Origin: US

Technical Specifications

• Pump rating: 110-240VAC 50/60Hz Single Phase
• Max. water flow rate: 10.6 US Gal / H
• Max rec. head: 66ft
• Max.suction lift: 3.3ft
• Sound level: 19dB(A)@ 1m
• Rated: Non-continuous
• Class: II appliance
• Safety switch: 3A normally closed
• Max.water temperature: 158°F
• Inlet size: 7.5mm
• Outlet size: 7.5mm
• IP Protection: IPx1
• Thermal Protection: Yes
• Fully Potted: Yes
• Self Priming: Yes
• Type: Condensate Pump
• Brand: Smart Electric
