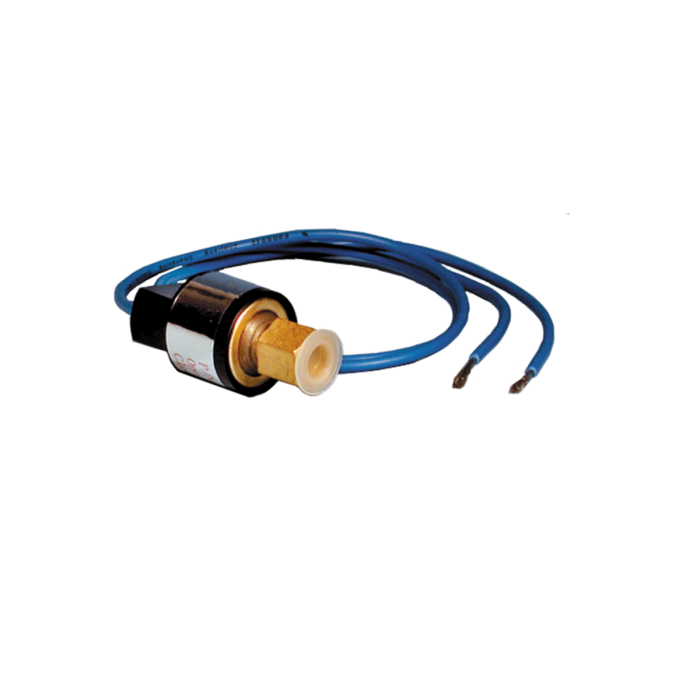

Smart Electric SLP40-80 pressure switch 40 psi 80 psi 250 burst

Product Description

The SMART ELECTRIC SLP40-80 Pressure Switch is engineered to continuously monitor both low and high pressures within a system, primarily for compressor protection and overall safety. This device ensures that the system automatically cuts off when pressure levels exceed the predefined change. It features fixed settings pressure controls, providing reliable operation for various applications.

• Fixed settings pressure controls for consistent operation
• Operates within a 24V-240V voltage range
• Contacts rated for 6 amps for electrical switching

Product Highlights

Monitors system pressure for compressor protection with automatic reset capabilities and R-410 compatibility.

Product Information

Standard Information

• Brand: SMART ELECTRIC
• Manufacturer Part Number: SLP40-80

Technical Specifications

• Pressure Control Type: Fixed Settings
• Operating Voltage: 24V-240V
• Contact Rating: 6 Amps
• High Pressure Cut Out Function: Open on pressure rise, automatic reset, normally closed
• Low Pressure Cut Out Function: Open on pressure drop, automatic reset, normally open
• Refrigerant Compatibility: R-410
• Low Pressure Set Point: 40 PSI
• High Pressure Set Point: 80 PSI
• Burst Pressure: 250 PSI
