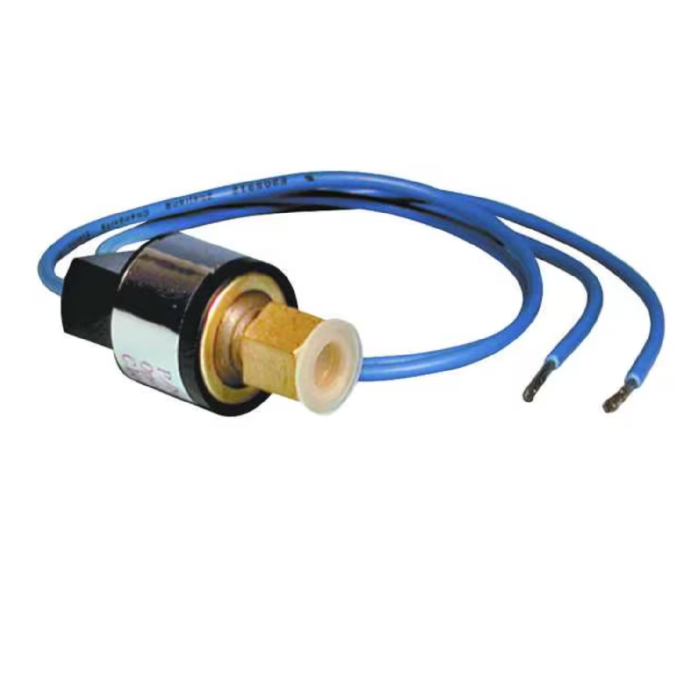

Smart Electric SLP25-50 Pressure Switch 25 PSI 50 PSI

Product Description

The SMART ELECTRIC SLP25-50 Pressure Switch is engineered to continuously monitor both low and high pressures within a system, primarily ensuring compressor protection and safety. This device features fixed pressure settings of 25 PSI and 50 PSI, with a burst pressure of 250 PSI. It operates across a voltage range of 24V-240V and has a contact rating of 6 amps, designed to cut off the system when pressure limits are exceeded.

• Fixed settings pressure controls for consistent operation.
• High pressure cut out opens on pressure rise with automatic reset, normally closed.
• Low pressure cut out opens on pressure drop with automatic reset, normally open.

Product Highlights

This pressure switch provides precise, fixed-setting pressure monitoring for system safety and compressor protection.

Product Information

Standard Information

• Brand: SMART ELECTRIC
• Manufacturer Part Number: SLP25-50

Technical Specifications

• Product Type: Pressure Switch
• Voltage: 24V-240V
• Contact Rating: 6 amps
• Low Pressure Setting: 25 PSI
• High Pressure Setting: 50 PSI
• Burst Pressure: 250 PSI
• Refrigerant Compatibility: R-410
