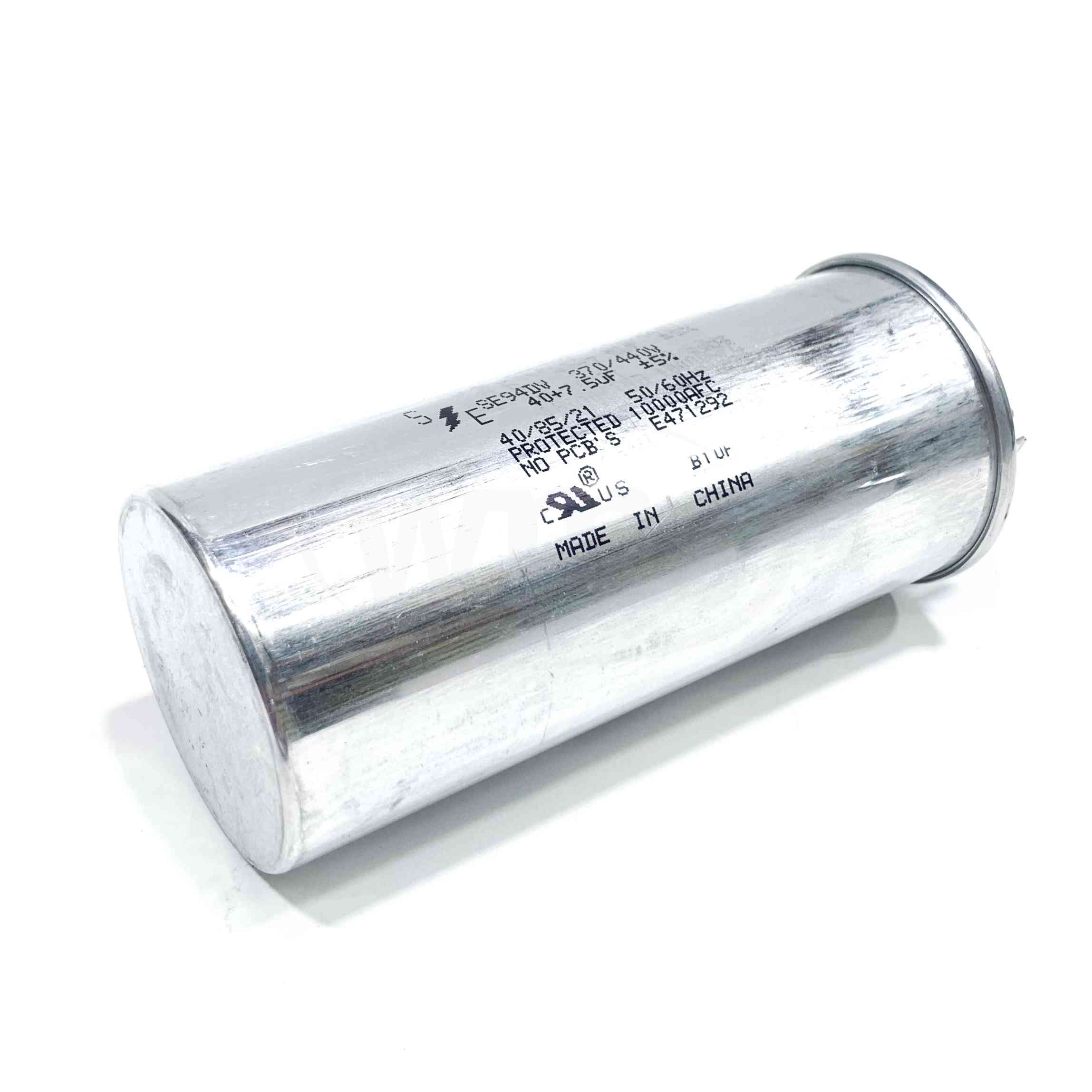

Smart Electric SE94DV Run Capacitor Round 40 + 7.5 x 370/440V

Product Description

The Smart Electric SE94DV is a run capacitor designed for reliable operation. This dual UL rated capacitor features 40 + 7.5 x 370/440V specifications. It is constructed with polypropylene film and metalized electrodes, ensuring a long service life. Ideal for HVAC motor and compressor applications in residential and light commercial systems.

• Dual UL Rated
• Non-PCB capacitors
• Individually boxed

Product Highlights

This capacitor provides stable HVAC motor performance and efficient compressor operation. It is designed for long-lasting durability and safe operation.

Product Information

Standard Information

• Brand: SMART ELECTRIC
• Manufacturer Part Number: SE94DV
• Country of Origin: Vietnam

Technical Specifications

• Brand: Smart Electric
• Type: Run Capacitor
• Shape: Oval
• MPN: SE94DV
• Capacitance: 40/7.5 MFD
• Voltage: 370V/440v
• Medium: Polypropylene Film
• Electrode: Metalized Film
• Case: Aluminum
• Cap: Metal (in accordance with UL)
• Filling material: Plant oil (in accordance with UL)
• Expected Life: 60,000 Hours
• Max permit temperature: 85º C/185º F
• Terminal material ignition time: Not to exceed 10 seconds
• Standards: UL 810, IEC 60252-1, EIA456-A
• Rated voltage: 370 / 440 VAC
• Maximum permitted temperature: 85°C / 185°F
• Terminal material, ignition time not to exceed: 10 seconds
• Certifications: UL 810, IEC 60252-1, EIA-456-A
