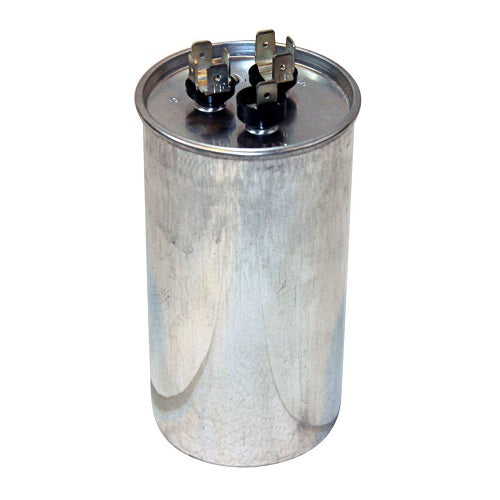

Smart Electric SE91DV 35+7.5 µF 370/440V Dual Round Capacitor

Product Description

The SMART ELECTRIC SE91DV 35+7.5 µF 370/440V Dual Round Capacitor is engineered for smooth HVAC motor and compressor operation. Built with polypropylene film and metalized electrodes, it delivers stable performance, extended service life, and safe replacement for residential and light commercial HVAC systems. It is rated for 370/440 VAC and operates up to 85°C / 185°F.

• Reliable dual round capacitor
• Designed for smooth HVAC motor and compressor operation
• Stable performance for HVAC motors and compressors

Product Highlights

This dual round capacitor supports reliable motor starting and running. Individually boxed and meets recognized industry safety standards.

Product Information

Standard Information

• Brand: SMART ELECTRIC
• Manufacturer Part Number: SE91DV

Technical Specifications

• Capacitance: 35+7.5 µF
• Design: Dual round capacitor design
• Rated Voltage: 370 / 440 VAC
• Maximum Permitted Temperature: 85°C / 185°F
• Certifications: UL 810, IEC 60252-1, EIA-456-A
• Medium: Polypropylene Film
• Electrode: Metalized Film
• Aluminum case: metal cap (in accordance with UL)
• Filling material: Plant oil (in accordance with UL)
• Expected Life: 60,000 Hours
