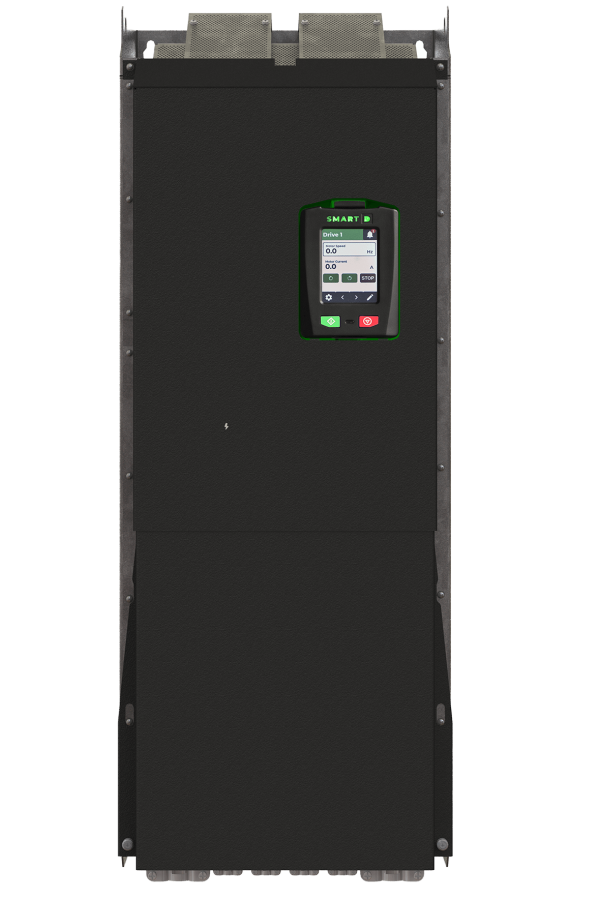

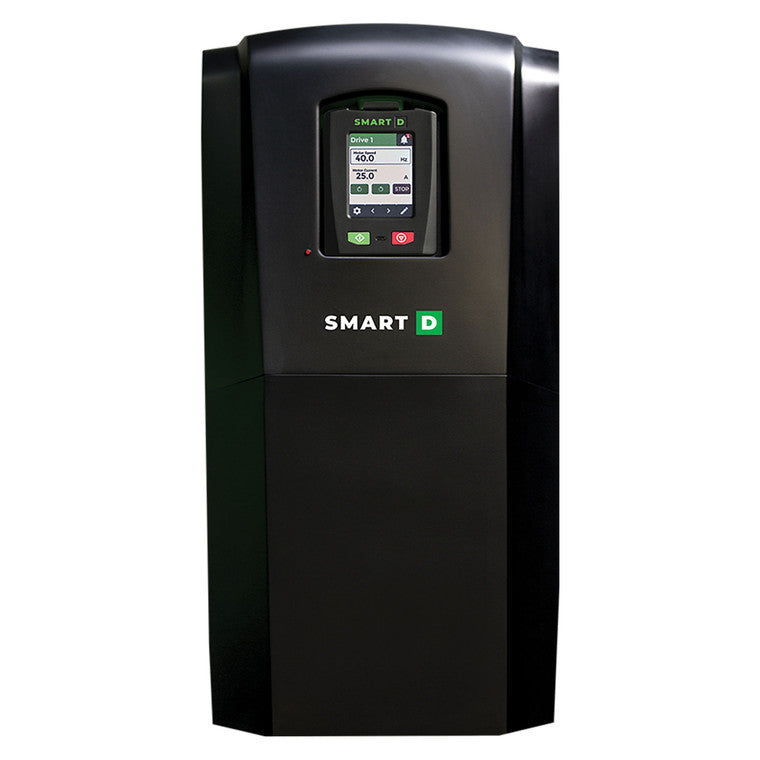

SMART D SDB-2-2550-A Variable Frequency Drive 55kW 75 HP

Product Description

The SMART D SDB-2-2550-A is a variable frequency drive designed for AC motors, offering advanced control and efficiency. This unit utilizes WBG transistor technology to generate a pure sine wave output, suitable for 3-phase AC induction motors. This drive is compact and comes equipped with features that save on space and installation time, eliminating the need for external filters while extending motor life.

• Variable frequency drive for AC motors
• Pure sine wave output for optimal performance
• Integrated features for reduced installation complexity

Product Highlights

This drive is characterized by its clean power output, making it ideal for a variety of industrial applications where precise control of motor speed is required.

Product Information

Standard Information

• Brand: SMART D
• Model: SDB-2-2550-A

Technical Specifications

• Input Power Voltage: 3~600Y -15% / +10%
• Output Current: 79 A
• Motor Power (Normal Duty): 55 kW, 75 HP
• Efficiency: ≥ 96%
• Ambient Temperature Rating: 50 °C
• Frame Size: S4
• Phase Rating: 3 Phase Input - 3 Phase Output
• Braking: Regenerative braking
