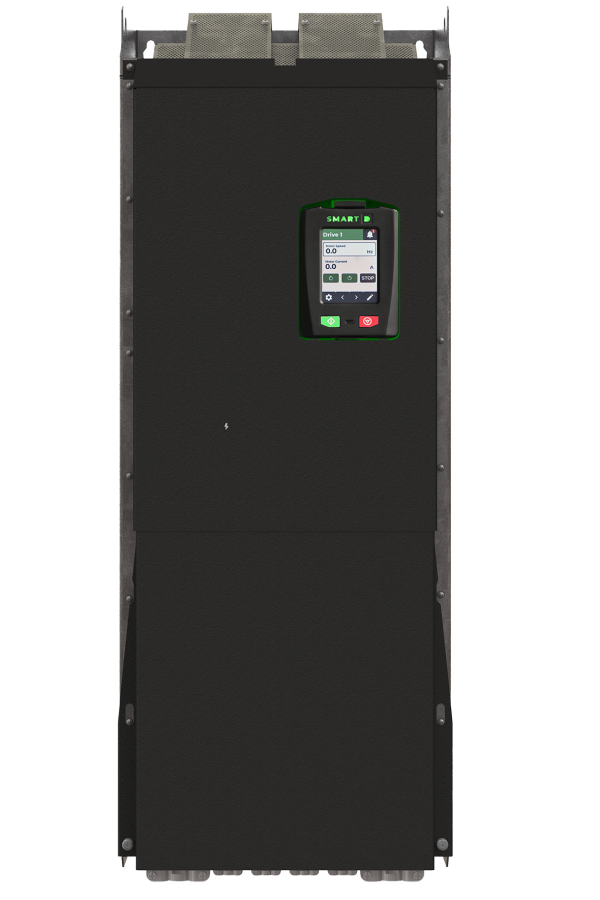

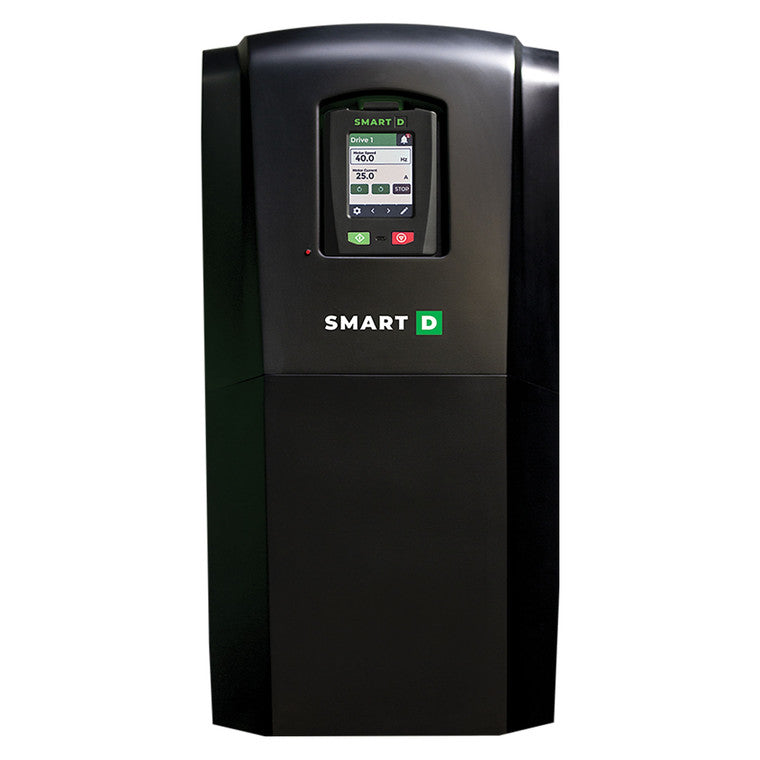

SMART D SDB-2-2450-A VFD 45kW 60 HP 66A S4

Product Description

The SMART D SDB-2-2450-A is a variable frequency drive designed for 3-phase AC induction motors. It uses advanced technology to create a clean sine wave output. This drive simplifies installation with built-in functions that save space and wiring time. It eliminates the need for additional filters and extends motor life.

• Variable frequency drive for AC motors
• Pure sine wave three-phase power output
• Field-Oriented Control for precise motor management

Product Highlights

This VFD is ideal for applications needing precise speed control and energy savings.

Product Information

Standard Information

• Voltage: 600 V
• Warranty: 18 months from date of shipment

Technical Specifications

• Input Power Voltage: 3~600Y -15% / +10%
• Input Power Frequency: 50 and 60 +/- 5%
• Output Current: 66 A RMS
• Motor Power Normal Duty: 60 HP
• Motor Power Heavy Duty: 50 HP
• Nominal Switching Frequency: 105 kHz
• Efficiency: ≧ 96%
• Ambient Temperature Rating: 50 °C
• Weight: 133.16 lb
• Dimensions: 12 in x 28 in x 10 in
