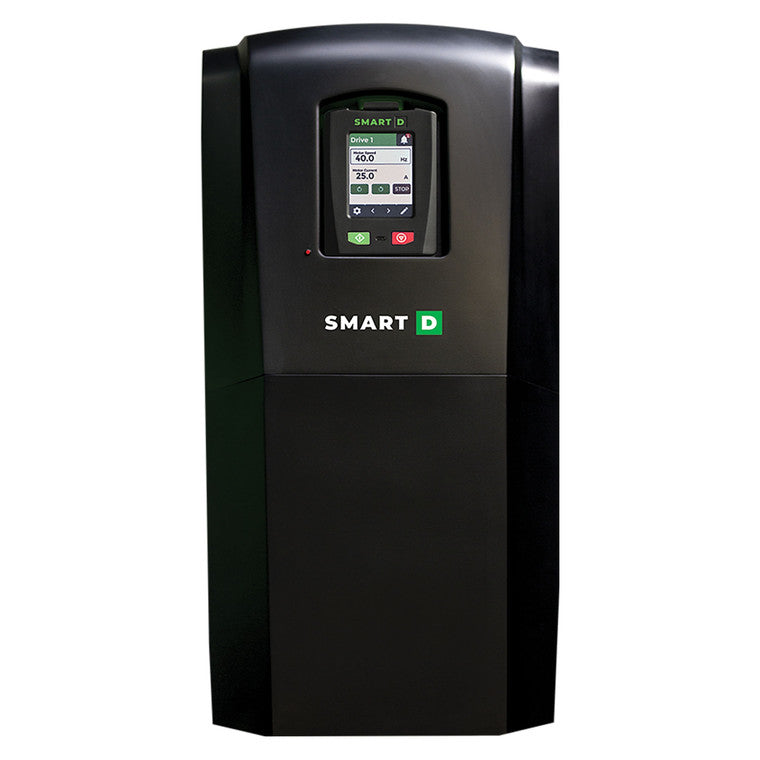

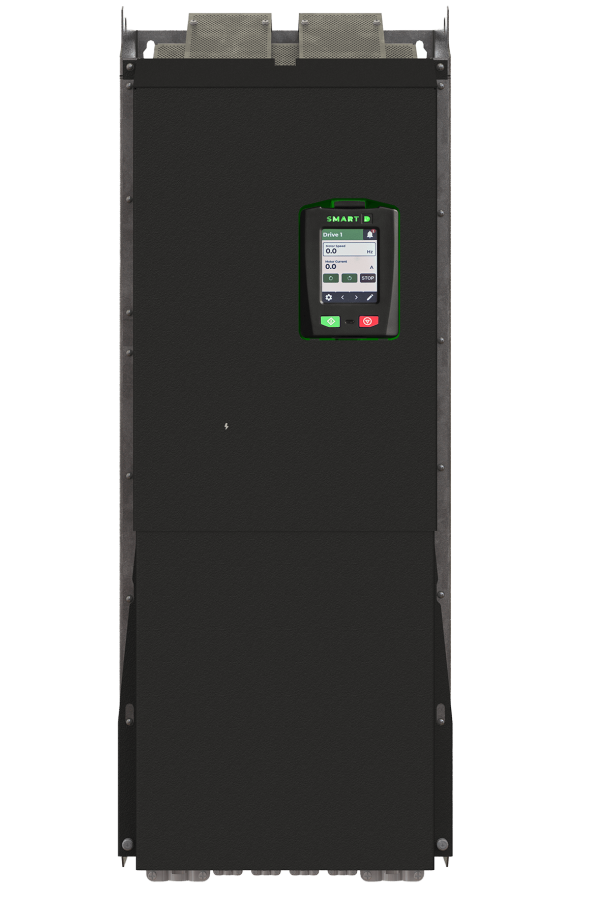

SMART D SDB-2-2375-A VFD 37.5kW 50 HP

Product Description

The SMART D SDB-2-2375-A is a variable frequency drive (VFD) designed for controlling 3-phase AC induction motors. It utilizes advanced WBG transistor technology and patented algorithms to generate a pure sine wave output. This makes it suitable for various industrial applications, providing efficient motor control without the need for additional filters. The compact design allows for easy installation and offers significant time and space savings.

• Variable frequency drive optimized for AC motors
• Pure sine wave output enhances motor performance and lifespan
• Built-in EMC filters for reduced noise and interference

Product Highlights

This VFD is ideal for HVAC systems, pump applications, and manufacturing processes where precise motor control is critical. Its features include field-oriented control, a wide input power range, and multiple digital input options.

Product Information

Standard Information

• Product Function: Variable frequency drive for AC motors
• Controlled Motors: Asynchronous 3-phase motors

Technical Specifications

• Input Power Voltage: 3~600Y -15% / +10%
• Input Frequency: 50 and 60 +/- 5%
• Output Current: 54 A rms continuous
• Maximum Transient Output Current: 60 A rms for 60 seconds
• Motor Power Rating: 50 HP normal duty
• Dimensions: 13.8 in (width) x 28.00 in (height) x 10.00 in (depth)
• Weight: 133.16 lb (60.4 kg)
• Protection Degree: UL (NEMA) type 1
