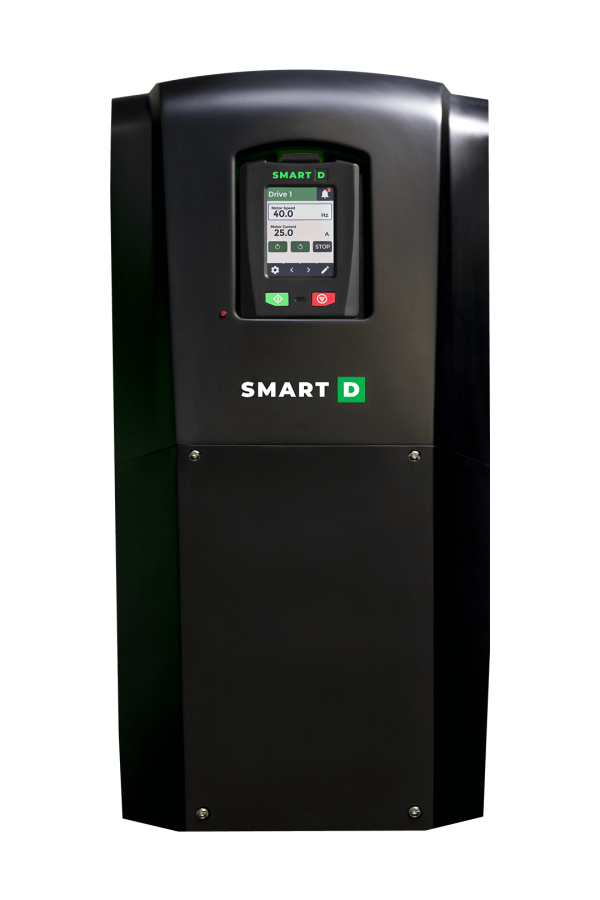

SMART D SDB-2-2185-A Variable Frequency Drive 18.5kW/25HP-28A

Product Description

The SMART D SDB-2-2185-A is a variable frequency drive designed for three-phase AC induction motors. It uses advanced WBG transistor technology to create a clean sine wave, ensuring efficient operation.

• Variable frequency drive for three-phase AC motors
• Produces a pure sine wave output
• Built-in efficiency features streamline installation

Product Highlights

This drive saves space and wiring time, while extending motor life by eliminating the need for additional filters.

Product Information

Standard Information

• Brand: SMART D
• MPN: SDB-2-2185-A

Technical Specifications

• Function: Variable frequency drive for AC motors
• Controlled Motors: Asynchronous 3-phase motors
• Input Power Voltage: 3~600 -15% / +10%
• Input Power Frequency: 50 and 60 +/- 5%
• Input Line Current: 30 A rms at 50 °C (122 °F)
• Output Current: 28 A continuous at 50 °C (122 °F)
• Motor Power: 18.5 kW, 25 HP normal duty
• Efficiency: ≥ 96%
• Width: 301 mm / 11.85 inches
• Height: 650 mm / 25.59 inches
• Depth: 251 mm / 9.88 inches
• Net Weight: 30 kg / 66 lb
• Ingress Protection: IP20
